In the world of wireless communication, two fundamental analog modulation techniques are widely used to transmit information over long distances — Amplitude Modulation (AM) and Frequency Modulation (FM). These techniques enable audio, video, and data signals to be transmitted through electromagnetic waves. Understanding the Difference Between Amplitude Modulation and Frequency Modulation is essential for students, engineers, and anyone interested in radio communication systems.
Although both AM and FM achieve the same goal of transmitting messages, they do so in different ways and have unique advantages, limitations, and applications. Let’s explore their concepts, working principles, characteristics, and key differences in a clear and detailed manner.
What is Modulation?
Modulation is the process of varying a property of a carrier wave (a high-frequency signal) in accordance with the message signal (low-frequency signal) that contains actual information such as voice, music, or data. The carrier wave ensures the message signal can travel long distances without losing strength.
There are three general parameters of a carrier wave that can be varied during modulation:
| Property | Type of Modulation |
| Amplitude | Amplitude Modulation (AM) |
| Frequency | Frequency Modulation (FM) |
| Phase | Phase Modulation (PM) |
Our focus here is on AM and FM.

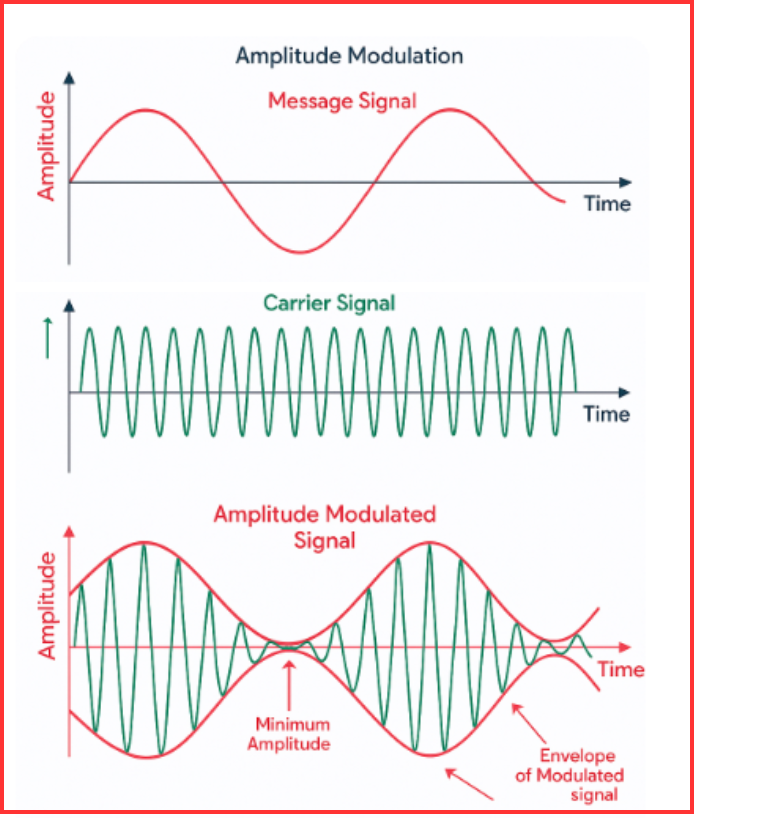

What is Amplitude Modulation (AM)?
Amplitude Modulation is a modulation technique where the amplitude of the carrier wave is varied in proportion to the instantaneous value of the message signal. The frequency and phase of the carrier wave remain constant.
Key Points about AM
- The loudness (amplitude) of the carrier changes with the input signal.
- Used in medium-wave AM radio broadcasting.
- Requires less bandwidth compared to FM.
- More susceptible to noise and interference.
Example
When listening to AM radio, if you notice crackling sound interruptions during weather disturbances, this happens because noise affects amplitude, and AM is amplitude-dependent.

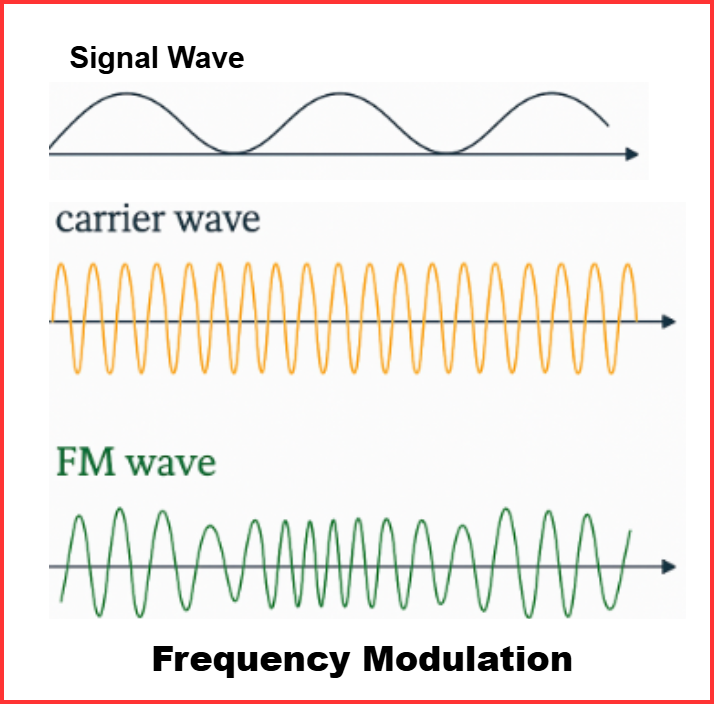

What is Frequency Modulation (FM)?
Frequency Modulation is a modulation technique where the frequency of the carrier wave is varied according to the amplitude of the message signal. The amplitude and phase of the carrier wave remain constant.
Key Points about FM
- The pitch (frequency) of the wave varies with the message signal.
- Used in FM radio broadcasting, TV sound transmission, and two-way radio.
- Offers better sound quality and higher noise resistance.
- Requires more bandwidth than AM.
Example
FM radio stations generally deliver clearer and higher-quality sound, even when there is interference, because noise does not easily affect frequency variations.

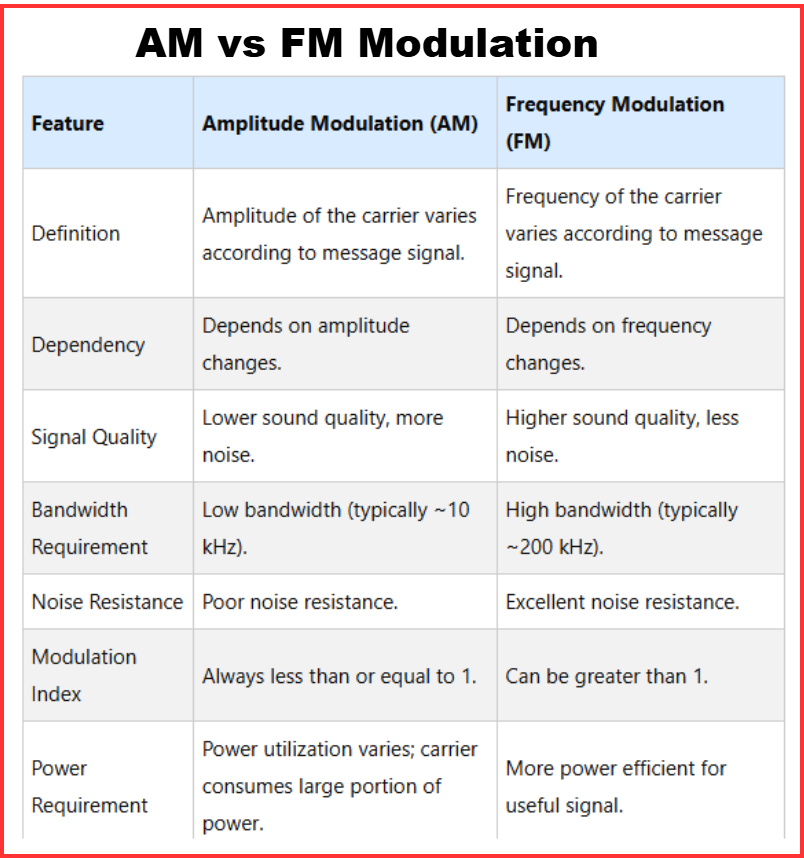

Difference Between Amplitude Modulation and Frequency Modulation
The following table summarizes the Difference Between Amplitude Modulation and Frequency Modulation clearly:
| Feature | Amplitude Modulation (AM) | Frequency Modulation (FM) |
| Definition | Amplitude of the carrier varies according to message signal. | Frequency of the carrier varies according to message signal. |
| Dependency | Depends on amplitude changes. | Depends on frequency changes. |
| Signal Quality | Lower sound quality, more noise. | Higher sound quality, less noise. |
| Bandwidth Requirement | Low bandwidth (typically ~10 kHz). | High bandwidth (typically ~200 kHz). |
| Noise Resistance | Poor noise resistance. | Excellent noise resistance. |
| Modulation Index | Always less than or equal to 1. | Can be greater than 1. |
| Power Requirement | Power utilization varies; carrier consumes large portion of power. | More power efficient for useful signal. |
| Applications | Long-distance radio broadcasting (AM Radio). | High-quality broadcasting (FM Radio, TV audio). |
| Range of Transmission | Larger coverage area. | Limited coverage area. |
| Equipment Cost | Low-cost transmitter and receiver. | More complex and costly equipment. |
Advantages & Disadvantags of Amplitude Modulation
Advantages:
- Simple design and cost-effective equipment.
- Wide coverage area makes it suitable for rural broadcasting.
- Suitable for long-distance communication, especially in aviation.
Disadvantages:
- Highly sensitive to noise.
- Lower audio quality.
- Inefficient power usage.
Advantages & Disadvantages of Frequency Modulation
Advantages:
- Superior sound quality compared to AM.
- Excellent noise resistance.
- Efficient in maintaining signal clarity during transmission.
Disadvantages:
- Requires more bandwidth.
- FM equipment (transmitters and receivers) tends to be more expensive.
- Limited transmission range because high-frequency waves cannot travel long distances.
Real-life Applications
| Application Type | AM Usage | FM Usage |
|---|---|---|
| Radio Broadcasting | AM Radio (News, talk shows) | FM Radio (Music, entertainment) |
| Aviation Communication | Used due to long-range reliability | Less common in aviation |
| Sound Transmission | Not preferred for high-quality audio | Used in music broadcast and live concerts |
| Mobile and Wi-Fi | Not used | FM concepts extend to many modern digital communication methods |
Which One is Better: AM or FM?
There is no single answer. It depends on the purpose:
- If wide coverage and simple equipment are needed → AM is preferred.
- If high-quality audio and noise-free performance are required → FM is the best choice.
Thus, both AM and FM have their unique strengths, and they coexist to serve different industry needs.
Conclusion
Understanding the Difference Between Amplitude Modulation and Frequency Modulation is essential in the field of communication engineering. While Amplitude Modulation changes the amplitude of the carrier wave and is suited for long-distance communication, Frequency Modulation varies the frequency of the carrier and provides superior audio quality with better noise immunity.
By comparing their characteristics, advantages, disadvantages, and applications, it becomes clear why both AM and FM continue to play important roles in modern broadcasting and communication systems.
