In the realm of electronics, diodes and rectifiers play pivotal roles in controlling and converting electrical signals. Although they are closely related and often used together, they serve distinct functions within electronic circuits. This article delves into the concepts of diode and rectifier, highlighting their differences and applications. We will also present a comparative analysis in a tabular form to clearly distinguish between the two.
What is a Diode?
A diode is a fundamental semiconductor device that allows current to flow in one direction while restricting it in the opposite direction. It is composed of two terminals: the anode and the cathode. The primary characteristic of a diode is its unidirectional conductivity, which makes it essential for controlling the direction of current in circuits.
Key Features of a Diode:
- Unidirectional Current Flow: Allows current to pass from anode to cathode, blocking reverse current.
- PN Junction: Comprises p-type and n-type semiconductor materials forming a junction.
- Forward and Reverse Bias: In forward bias, the diode conducts electricity; in reverse bias, it blocks current.
- Low Voltage Drop: Typically around 0.7V for silicon diodes when forward-biased.
- Types of Diodes: Include standard diodes, Zener diodes, Schottky diodes, light-emitting diodes (LEDs), and more.
Applications of Diodes:
- Rectification: Converting alternating current (AC) to direct current (DC).
- Signal Demodulation: Extracting audio signals from radio frequencies.
- Voltage Regulation: Maintaining stable voltage levels using Zener diodes.
- Protection Circuits: Preventing reverse voltage damage in electronic devices.
What is a Rectifier?
A rectifier is an electronic circuit or device that converts alternating current (AC) to direct current (DC). Rectifiers are essential in power supplies for electronic devices, ensuring that the components receive a consistent and unidirectional flow of electricity. Rectifiers typically utilize diodes as their core components to achieve the conversion process.
Types of Rectifiers:
- Half-Wave Rectifier: Uses a single diode to allow only one half of the AC cycle to pass through, effectively blocking the other half.
- Full-Wave Rectifier: Employs multiple diodes to convert both halves of the AC cycle into DC, resulting in a more efficient and smoother DC output.

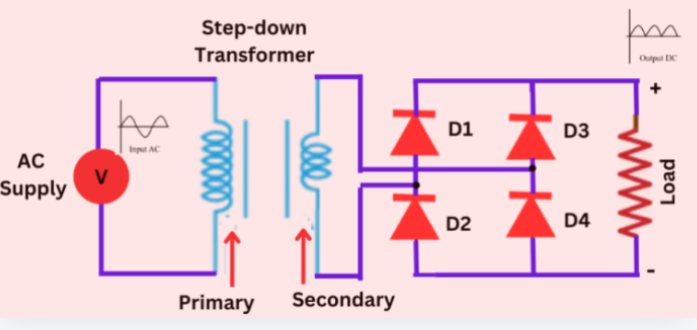

- Bridge Rectifier: A type of full-wave rectifier that uses four diodes arranged in a bridge configuration to maximize efficiency and reduce ripple in the DC output.
Key Features of Rectifiers:
- AC to DC Conversion: Essential for powering DC electronic devices from AC power sources.
- Smoothing Capacitors: Often used in conjunction with rectifiers to reduce voltage ripple and provide a stable DC output.
- Efficiency: Varies based on the type of rectifier; full-wave and bridge rectifiers are more efficient than half-wave rectifiers.
- Applications: Power supplies, battery charging, radio signal detection, and more.
Diode vs. Rectifier: A Comparative Analysis
To clearly understand the distinctions between a diode and a rectifier, the following table outlines their key differences:
| Aspect | Diode | Rectifier |
|---|---|---|
| Definition | A semiconductor device that allows current to flow in one direction only. | An electronic circuit or device that converts AC to DC using diodes. |
| Function | Controls the direction of current flow, acting as a one-way valve. | Converts alternating current (AC) into direct current (DC). |
| Components | Consists of two terminals: anode and cathode. | Comprises multiple diodes arranged in specific configurations (e.g., bridge). |
| Types | Includes standard, Zener, Schottky, LED diodes, etc. | Includes half-wave, full-wave, and bridge rectifiers. |
| Application | Used in rectification, signal modulation, voltage regulation, etc. | Primarily used in power supply units, battery chargers, and DC power generation. |
| Operation | Operates based on forward and reverse bias principles. | Operates by allowing diodes to conduct during specific phases of the AC cycle. |
| Complexity | Simple two-terminal device. | More complex circuits involving multiple diodes and sometimes additional components like capacitors. |
| Purpose | Provides controlled current flow in electronic circuits. | Ensures a steady and unidirectional DC supply from an AC source. |
| Example | A single silicon diode is used in signal processing. | A bridge rectifier circuit is used in a laptop power adapter. |
Conclusion
While both diodes and rectifiers are integral to the functioning of electronic systems, they serve distinct purposes. A diode is a single-component device that controls the direction of current flow, making it essential for various applications such as signal modulation and voltage regulation. On the other hand, a rectifier is a more complex circuit that leverages multiple diodes to convert alternating current (AC) into direct current (DC), which is crucial for powering electronic devices.
Understanding the difference between a diode and a rectifier is fundamental for anyone involved in electronics, as it enables the effective design and implementation of circuits that require controlled current flow and efficient power conversion. Whether you are building a simple power supply or a complex electronic system, recognizing the roles of these components ensures optimal performance and reliability.
