What is a Rectifier Diode?
A rectifier diode is a semiconductor device specifically designed for rectification, meaning it allows current flow in one direction while blocking it in the opposite direction. This unique property is essential in power conversion circuits, where AC (alternating current) is converted to DC (direct current).
A rectifier diode consists of a P-N junction, similar to a standard diode, but it is built to handle high voltage and current loads. The P-type material forms the anode, while the N-type material forms the cathode. When the anode is at a higher potential than the cathode, the diode conducts, allowing current to flow. However, when the polarity reverses, the diode blocks the current, preventing backflow.
Rectifier diodes are widely used in power supplies, battery chargers, and electronic circuits that require a steady DC voltage. They are available in different types, such as silicon rectifier diodes, Schottky diodes, and fast-recovery diodes, each offering specific advantages based on voltage and speed requirements.
One of the most common applications of a rectifier diode is in bridge rectifiers, where four diodes work together to convert AC input into DC output efficiently. Their ability to handle high power loads makes them a fundamental component in modern electrical and electronic systems.
Rectifier Diode Circuit Working
A rectifier diode operates based on the principle of unidirectional current flow, meaning it allows current to pass in one direction while blocking it in the opposite direction. This characteristic is crucial in AC to DC conversion circuits.
Unbiased Rectifier Diode
An unbiased rectifier diode refers to a diode that is not subjected to any external voltage across its anode and cathode terminals. In this state, the diode is in equilibrium, meaning there is no net movement of charge carriers, and no current flows through the device.
In an unbiased diode, the depletion region is naturally formed at the PN junction due to the diffusion of charge carriers. Electrons from the N-type region move towards the P-type region, while holes from the P-type region diffuse towards the N-type side. This movement results in the formation of a built-in potential (barrier voltage) across the junction, which prevents further carrier movement.
At equilibrium, the thermal generation and recombination of charge carriers occur, but there is no external force driving a continuous current. The width of the depletion layer remains constant, depending on the doping concentration of the semiconductor material.
Effects of Biasing
- When a forward bias is applied, the external voltage reduces the barrier potential, allowing current to flow.
- When a reverse bias is applied, the depletion region widens, preventing the majority carrier flow and allowing only a small leakage current.
Thus, an unbiased rectifier diode serves as the baseline state of the diode before any external voltage is applied, maintaining equilibrium with no significant conduction.
Forward Biased Diode
When a rectifier diode is forward-biased, the anode is connected to a higher potential than the cathode. This reduces the barrier potential, allowing current flow through the diode. Below points explaining its working in detail:
- Anode at Higher Potential
- The anode is connected to the positive terminal of the power source, and the cathode is connected to the negative terminal.
- Reduction of Depletion Region
- The applied forward voltage reduces the depletion region at the P-N junction, allowing charge carriers to move easily.
- Barrier Potential Overcome
- For a silicon diode, the threshold voltage is approximately 0.7V, and for a germanium diode, it is around 0.3V.
- Current Flow Initiates
- Once the applied voltage exceeds the threshold voltage, electrons and holes begin moving freely, allowing current to flow.
- Low Resistance Path
- In the forward-biased state, the diode offers low resistance, allowing maximum current conduction with minimal voltage drop.
- Voltage Drop Across Diode
- The typical voltage drop across a silicon rectifier diode is around 0.7V, while a Schottky diode has a lower voltage drop (0.2V to 0.3V).
- Increased Current with Voltage
- As the applied voltage increases, the current flow through the diode also increases exponentially, as per the diode equation.
- Power Dissipation in Diode
- The diode dissipates power in the form of heat, which must be managed to prevent overheating, especially in high-current applications.
- Application in Rectifiers
- In rectifier circuits, diodes are forward-biased during the positive half-cycle of AC, allowing DC conversion.
- Limitation of Maximum Forward Current
- Every diode has a maximum forward current rating beyond which it may overheat and fail. It is essential to select a diode with an appropriate current rating for the application.
Reverse Biased Diode
When a rectifier diode is reverse biased, the anode is at a lower potential than the cathode. In this state, the diode blocks current flow, except for a small leakage current. Below are the points explaining its working in detail:
- Reverse Voltage Applied
- The anode is connected to the negative terminal, and the cathode is connected to the positive terminal of the power source, reversing the diode’s polarity.
- Expansion of Depletion Region
- The reverse voltage increases the width of the depletion region, making it harder for charge carriers to move across the P-N junction.
- High Resistance Path is Created
- The diode offers a high resistance in the reverse bias condition, preventing significant current flow through the circuit.
- Minimal Leakage Current Exists
- A small leakage current flows due to minority charge carriers, but it is typically in the microampere (µA) range and negligible.
- Breakdown Occurs Beyond Reverse Voltage Limit
- If the reverse voltage exceeds the breakdown voltage, the diode enters avalanche or Zener breakdown, leading to high reverse current flow.
- Protection Against Reverse Voltage Surges
- In circuits, rectifier diodes prevent damage by blocking reverse voltage, which can otherwise harm sensitive electronic components.
- Temperature Affects Leakage Current
- Higher temperature increases the leakage current, as more minority carriers gain enough energy to cross the depletion region.
- Common in Rectifier Circuits During Negative AC Cycle
- In a rectifier circuit, the diode is reverse biased during the negative half-cycle of AC, preventing current flow.
- Reverse Recovery Time in Switching Applications
- When switching from reverse bias to forward bias, the diode takes some time to recover, known as reverse recovery time.
- Reverse Biased Condition in Zener Diodes
- Unlike regular diodes, Zener diodes are designed to operate in reverse breakdown mode for voltage regulation applications.
Half-Wave Rectifier
A half-wave rectifier is a simple circuit that converts AC voltage to DC voltage using a single rectifier diode. During the positive half-cycle of AC input, the diode is forward-biased, allowing current to flow. During the negative half-cycle, the diode is reverse-biased, blocking current flow. This results in a pulsating DC output, which is not smooth and requires a filter capacitor for better performance.
Half-wave rectifiers are inefficient as they utilize only one-half of the AC waveform. They are commonly used in low-power applications, signal demodulation, and basic power supply circuits.

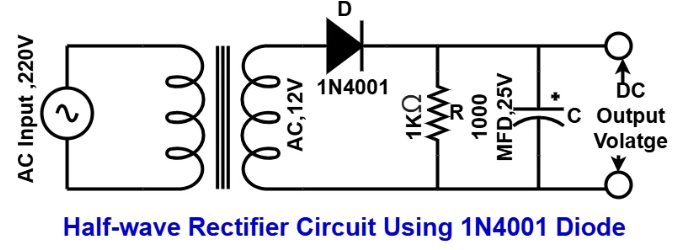

The following diagram illustrates the circuit of a half-wave rectifier diode.
Full-Wave Rectifier

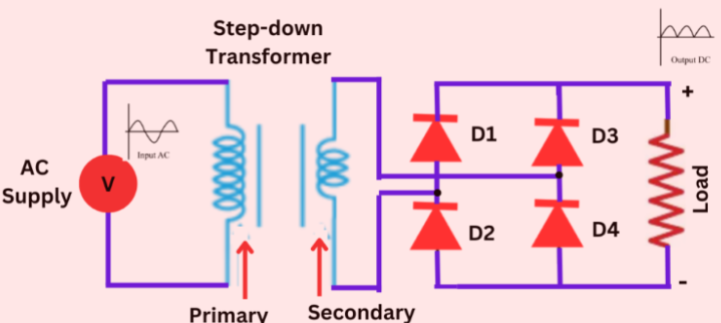

A full-wave rectifier circuit consists of four diodes arranged in a bridge configuration, allowing both halves of the AC waveform to be converted into positive output voltage.
During each AC cycle, two diodes are forward biased, allowing current to flow, while the other two are reverse biased and remain inactive. This ensures that current flows in the same direction through the load resistor, achieving full-wave rectification.
Full-wave rectifiers are commonly used in power supplies to convert AC to DC. A parallel capacitor across the load resistor helps reduce ripple, providing a smoother DC output. The following diagram illustrates the full-wave rectifier circuit.
Rectifier Diode Parameters
- Maximum Temperature (Tₘₐₓ)
- The highest temperature a diode can withstand, usually up to 150°C or more, ensuring reliability in high-power circuits.
- High Current Handling (Iₘₐₓ or Iₓₓₘₐₓ)
- Represents the maximum forward current the diode can handle without damage, which is critical for power applications.
- Reverse Voltage Rating (Vᵣ or Vᵣₘₐₓ)
- The maximum reverse voltage a diode can withstand before breakdown occurs, essential for circuit protection.
- Forward Voltage Drop (Vf)
- The voltage required for the diode to start conducting in forward bias; typically 0.7V for silicon diodes and 0.3V for Schottky diodes.
- Peak Inverse Voltage (PIV or Vᵣₘ)
- The highest reverse voltage a diode can endure without damage, crucial for rectifier circuit design.
- Surge Current Rating (Iₛₘ)
- The maximum current pulse the diode can handle for a short duration, protecting it from power surges.
- Reverse Recovery Time (Tᵣᵣ)
- The time required for the diode to switch from forward conduction to blocking mode, significant in high-frequency circuits.
- Junction Capacitance (Cj)
- The intrinsic capacitance of the diode, affecting switching speed and performance in high-frequency applications.
- Power Dissipation (Pₘₐₓ)
- The amount of power lost as heat during diode operation, impacting efficiency and thermal management.
- Breakdown Voltage (Vb or V(BR))
- The voltage at which the diode enters avalanche breakdown, allowing reverse current flow, useful in Zener diodes.
- Efficiency (η)
- The ratio of output DC power to input AC power, with higher values reducing energy losses and heat generation.
The performance of a rectifier diode is influenced by various factors, including ambient temperature, electrical stress, and circuit conditions. Here’s how these factors affect different parameters:
Maximum Temperature
All semiconductor devices generate heat, especially those used in power supplies. One of the biggest challenges is preventing thermal runaway, where an increase in temperature leads to a rise in current, eventually causing diode failure. Higher temperatures increase the leakage current and decrease breakdown voltage, which negatively impacts the diode’s efficiency and reliability. If not properly managed, this can result in excessive heating and permanent damage to the diode.
For instance, the reverse leakage current in silicon diodes is typically measured at 25°C, but it doubles for every 10°C increase in temperature. Additionally, as temperature rises, the forward voltage drop (Vf) decreases, allowing higher current flow, which may further accelerate thermal runaway. The forward junction potential drops by approximately 2 mV to 3 mV per 1°C rise in temperature. To prevent these issues, effective heat dissipation techniques, such as heat sinks and proper ventilation, must be implemented.
High Current
Rectifier diodes are designed to handle high current loads, making them essential for power supply circuits and industrial applications. A double high-current rectifier diode is an excellent example of a high-performance diode, capable of handling 2x30A current, ensuring efficient power conversion.
One notable high-current rectifier diode is the STPS60SM200C by STMicroelectronics, which is designed for welders, base stations, AC/DC power supplies, and other industrial applications. It features a VRRM breakdown voltage of 200V, a conduction voltage of 640mV, and 2x30A current capacity.
Additionally, it offers electrostatic discharge (ESD) protection up to 2kV, enhancing reliability. With an operating temperature range of -40°C to 175°C, this diode can function effectively in various demanding conditions, making it suitable for base stations and high-power applications.
How to Test a Rectifier Diode?
The rectifier diode can be tested using different methods. A simple multimeter is commonly used to determine the diode’s polarity (anode and cathode). There are at least three ways to test a rectifier diode, but the two most straightforward methods are using an ohmmeter and the VDC measurement function.
Using an Ohmmeter
- Set the multimeter to the ohmmeter function. Ensure the multimeter is in resistance measurement mode.
- Connect the probes – Attach the positive (red) probe to the anode and the negative (black) probe to the cathode of the diode.
- Check the resistance readings –
- If the multimeter shows low resistance, the diode is forward biased and conducting current.
- If the multimeter shows high resistance, the diode is reverse-biased, meaning it blocks current.
- Reverse the probes – Swap the connections and take another reading.
- If the diode is good, it will now show high resistance in this direction.
- If it shows low resistance in both directions, the diode is shorted and faulty.
- If it shows high resistance in both directions, the diode is open and needs replacement.
VDC Measurement Function
To test a rectifier diode using the diode test function on a digital multimeter, first, set the multimeter to diode mode (usually represented by a diode symbol). Connect the positive (red) probe to the anode and the negative (black) probe to the cathode. In this forward-biased condition, the multimeter will display the forward voltage drop (Vf), which is typically around 0.7V for silicon diodes and 0.3V for Schottky diodes. This reading confirms that the diode is conducting in the forward direction.
Next, reverse the probes by connecting the red probe to the cathode and the black probe to the anode. In this reverse-biased condition, the multimeter should display “OL” (over limit) or a very high resistance, indicating that the diode is blocking current as expected. If the multimeter shows a voltage drop in both directions or no reading at all, the diode may be damaged or defective and should be replaced.
Maximum Voltage and Current Rating of Rectifier Diodes
Rectifier diodes, typically made of silicon (Si), have a forward voltage drop of approximately 0.7V. The table below lists the maximum current and maximum reverse voltage ratings for various rectifier diodes. For example, the 1N4001 diode is suitable for low-voltage circuits with a current rating of less than 1A.
A key characteristic of rectifier diodes is their unidirectional current flow, meaning they conduct current in one direction and block it in the other, depending on the applied voltage. This property is essential for converting AC voltage to DC voltage. A rectifier diode has two terminals: the anode and the cathode. Current flows through the diode when the anode is connected to the positive terminal of the power supply.
Rectifier Diode Ratings
| Diode | Maximum Current | Maximum Reverse Voltage |
|---|---|---|
| 1N4001 | 1A | 50V |
| 1N4002 | 1A | 100V |
| 1N4007 | 1A | 1000V |
| 1N5401 | 3A | 100V |
| 1N5408 | 3A | 1000V |
Applications of Rectifier Diodes
Rectifier diodes are widely used in various electrical and electronic circuits. Some common applications include:
- AC to DC Conversion – Used in power supplies to convert alternating current (AC) to direct current (DC).
- Signal Demodulation – Helps extract audio or data signals from modulated waveforms in radio and communication systems.
- Voltage Clamping – Limits voltage spikes in circuits to protect sensitive components from overvoltage conditions.
- Reverse Polarity Protection – Prevents damage to circuits by blocking current flow if power is connected incorrectly.
- Voltage Regulation – Works with Zener diodes to maintain stable voltage levels in power supply circuits.
- Signal Isolation – Used in coupling and decoupling applications to prevent unwanted signal interference.
- Overvoltage Protection – Protects circuits from voltage surges caused by switching transients or lightning strikes.
- LED and Laser Diode Circuits – Controls current flow in LED lighting systems and LASER diodes for optical applications.
- Mixing Signals – Used in RF circuits to combine or mix signals in communication and radio applications.
- Rectifier Bridges – Used in full-wave rectification to ensure efficient power conversion in transformers and power adapters.
Conclusion
A rectifier diode is a crucial component that allows electrical current to flow in only one direction, making it essential for power supply operations. These diodes can handle higher current levels compared to standard diodes and are primarily used for converting alternating current (AC) into direct current (DC). They can be designed as discrete components or integrated circuits, depending on the application.
Typically made from silicon (Si), rectifier diodes feature a relatively large PN junction surface, which increases capacitance in reverse bias conditions. To enhance the peak inverse voltage (PIV) rating, two rectifier diodes can be connected in series in high-voltage applications, ensuring greater voltage handling capabilities.
