The applications of SCR mainly come from its strength in controlling high power efficiently. A Silicon Controlled Rectifier (SCR) is a semiconductor device with four layers and three junctions. It works like an electronic switch. Current flows through it only when a small signal is given to the gate terminal.
After switching ON, it keeps conducting until the current drops below a set level, called the holding current. Because of its simple operation, high reliability, and ability to handle large currents, the SCR is widely used in motor control, power regulation, battery chargers, and industrial automation systems.
SCRs are widely used in electronics, power systems, industrial automation, consumer devices, communication equipment, and protection systems. Their ability to precisely control large electrical loads without mechanical movement has made them a key component in modern power electronics.
Why SCRs Are Preferred
SCRs have several advantages that make them ideal for power control applications:
- They can handle high currents and voltages.
- Their switching speed is reasonably fast.
- They have high efficiency with low power losses.
- They provide smooth and precise control through phase angle adjustments.
- They are compact, rugged, and reliable.
Because of these benefits, SCRs are preferred in equipment where stable and controlled power delivery is crucial.

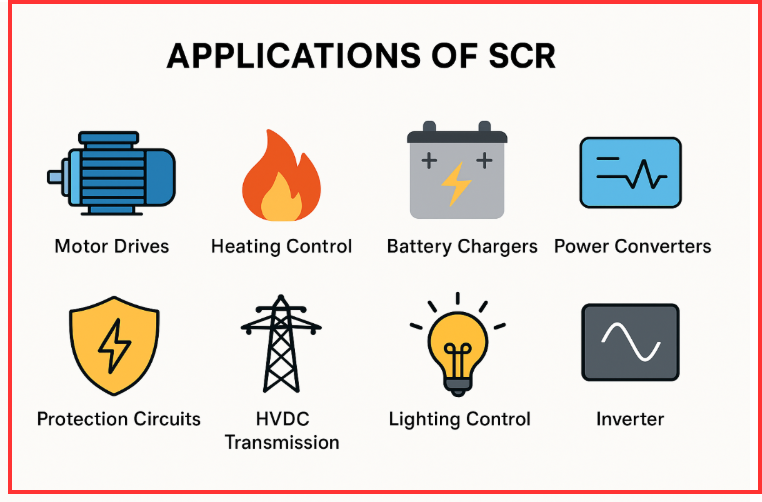

Major Applications of SCR
1. Industrial Heating and Temperature Control
One of the most common applications of SCRs is in industrial heating systems. Industrial processes such as metal melting, heat treatment, furnace operation, and chemical processing require precise temperature control. SCRs regulate the power delivered to heating elements by adjusting the firing angle, ensuring accurate and stable temperature levels. This ensures uniform heating, reduces energy wastage, and increases product quality.
Examples include:
- Electric arc furnaces
- Induction heaters
- Industrial ovens
- Plastic molding heaters
Industries rely on SCR control to prevent overheating and maintain consistent output.
2. Motor Speed Control
SCRs are widely used in DC motor speed control. The SCR controls the average voltage applied to the motor armature by varying the conduction angle in each AC cycle. This allows smooth and precise speed variation without causing mechanical wear and tear.
Applications include:
- Conveyor belt drives
- Rolling mills
- Textile machinery
- Elevators and cranes
- Electric trains and trams
Motor speed control using SCRs is more efficient than mechanical methods such as gear shifting or rheostats.
3. Battery Charging Circuits
Battery chargers require controlled charging to prevent overcharging and overheating. SCRs help regulate the charging current based on the battery’s voltage level. When the battery reaches full charge, the SCR automatically stops current flow or reduces it to a trickle charge level.
SCR-based chargers are commonly used in:
- Car and truck battery chargers
- Power backup systems
- Inverter battery systems
- UPS units
This improves battery life and ensures safe charging.
4. Light Dimming and Lamp Control
SCRs are used in dimmer circuits to adjust the brightness of lamps. By changing the firing angle of the SCR, the amount of power delivered to the lamp varies, which changes the intensity of the light.
Applications include:
- Home lighting dimmers
- Stage and theater lighting control systems
- Commercial ambience lighting
SCR dimmers are efficient, silent, and maintenance-free compared to conventional resistive dimmers.
5. Controlled Rectifiers and Power Converters
SCRs are used in controlled rectifiers to convert AC to controlled DC output. This is important in processes where the power supply must be adjustable rather than fixed. SCRs actively control inverter circuits to convert DC back into AC, as seen in solar power systems and uninterruptible power supplies (UPS).
Applications include:
- DC power supply units
- Electroplating and electrolysis equipment
- Welding control units
- Power regulation in substations
SCR-based power converters are essential in energy management and renewable energy systems.
6. Overvoltage Protection (Crowbar Circuits)
Crowbar circuits protect electronic devices from voltage spikes. If the voltage exceeds a preset limit, the SCR turns on and creates a short circuit path to blow the fuse or trip the breaker. This prevents sensitive equipment from damage.
Used in:
- Power supply protection
- Communication equipment
- Medical devices
- Precision laboratory equipment
This provides reliable and fast protection.
7. HVDC Transmission Systems
High Voltage Direct Current (HVDC) transmission transmits power over very long distances with minimal losses. Converter stations use SCRs to convert AC to DC for transmission and then convert the DC back to AC for local distribution.
Advantages include:
- Reduced transmission losses
- Improved power stability
- Ability to link asynchronous power grids
SCRs help in ensuring efficient, stable, and long-distance power delivery.
8. Static Switches and Relay Replacement
SCRs act as solid-state switches with no moving parts. They can switch loads much faster than electromechanical relays, with higher reliability and longer service life.
Applications of SCR include:
- Automatic switching in power circuits
- Load transfer systems
- Emergency power backup switching
This eliminates sparking, noise, and physical wear.
9. Inverter and UPS Systems
In uninterruptible power supply (UPS) systems, SCRs help convert DC from the battery into AC to supply power during outages. Inverters in solar systems use SCRs for efficient power conversion.
SCR-based UPS systems are commonly used in:
- Hospitals
- Data centers
- Banks
- Residential backup systems
This ensures reliable power delivery when the main supply fails.
Conclusion
The applications of SCR make the Silicon Controlled Rectifier one of the most valuable devices in power electronics. Its capability to handle and control large power levels with precision makes it essential in industrial, commercial, and household systems. From motor speed control and heating regulation to battery charging, power converters, protection circuits, and HVDC transmission, SCRs support many critical functions in electrical networks.
As industries continue to move toward automation and efficient energy management, the use of SCRs will grow even further. Their reliability, long service life, and cost-effectiveness ensure that SCRs will remain a key component in power electronics for years to come.
