Difference Between BJT and MOSFET

Discover the key differences between BJT and MOSFET in this comprehensive guide. Learn about their working principles, applications, and find a detailed comparison between these two essential transistors

In the world of electronic circuits and semiconductor devices, Bipolar Junction Transistors (BJTs) and Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) are two widely used transistors. These devices are essential for amplification, switching, and signal processing in numerous applications, ranging from basic analog circuits to complex digital systems.

Although both BJT and MOSFET serve similar functions as switches and amplifiers, they operate on different principles and possess unique characteristics that make them suitable for specific applications. The fundamental difference between BJT and MOSFET lies in how they are controlled and how they conduct electrical current.

BJT is a current-controlled device, meaning its operation depends on the current flowing into the base terminal. The BJT has three layers of semiconductor material forming two junctions, hence the name “bipolar.” It comes in two types: NPN and PNP, which differ in the direction of current flow. BJTs are commonly used in analog circuits where linear amplification is needed due to their superior gain characteristics.

On the other hand, MOSFET is a voltage-controlled device, which means it is driven by the voltage applied to the gate terminal. MOSFETs are unipolar devices that rely on either electrons (in n-channel MOSFETs) or holes (in p-channel MOSFETs) for conduction. Their construction includes an oxide layer between the gate and the channel, which provides high input impedance. Due to this, MOSFETs are highly efficient in power electronic circuits and digital applications, such as microprocessors, where fast switching and minimal power consumption are critical.

Understanding the distinctions between BJT and MOSFET is crucial for selecting the right transistor based on your design requirements. In this article, we will explore these differences in detail and provide a tabular comparison for clarity.

What is BJT?

A Bipolar Junction Transistor (BJT) is a semiconductor device used primarily for amplification and switching applications in electronic circuits. It is referred to as “bipolar” because it relies on the movement of two distinct types of charge carriers: electrons and holes, for its operation. Unlike unipolar devices, such as MOSFETs, which rely on a single type of charge carrier, BJTs use both to facilitate current flow. BJTs consist of three layers of semiconductor material that form two junctions, which can be configured as either NPN or PNP types. These configurations determine the direction of current flow in the transistor.

A BJT consists of three terminals: the emitter, base, and collector. The emitter releases charge carriers, the base regulates their movement, and the collector collects the carriers that travel through the base. In an NPN transistor, current moves from the collector to the emitter when a small current is introduced at the base. In contrast, in a PNP transistor, current moves from the emitter to the collector when the base is negatively charged.

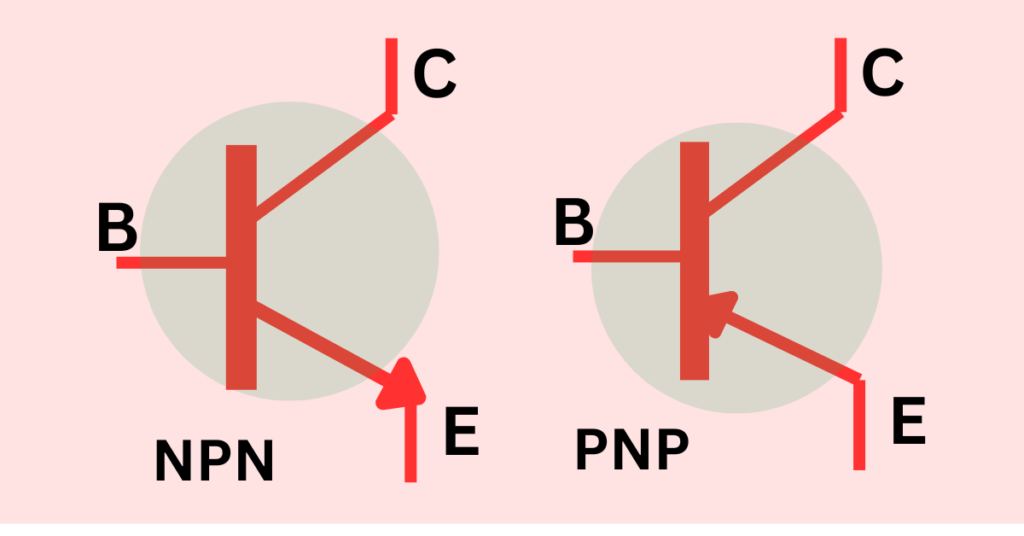

BJT

BJTs are current-controlled devices, meaning the current flowing through the base terminal controls the larger current between the collector and emitter. This property makes BJTs highly effective for amplification, as a small current applied to the base can regulate a significantly larger current at the collector. The effectiveness of this current control is quantified by the transistor’s current gain, denoted as β (beta), which represents the ratio of the collector current to the base current.

The efficiency of this current control is measured by the transistor’s current gain, represented by the symbol β (beta), which is the ratio of the collector current to the base current. BJTs are widely used in analog circuits that require linear amplification, such as audio amplifiers and signal processing systems. While they are not as prevalent in high-power applications as MOSFETs, BJTs remain crucial for low-power circuits where precise current control and amplification are required.

What is MOSFET?

A Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a voltage-controlled semiconductor device widely used in electronic circuits for switching and amplification. It is known for its efficiency and speed, making it a crucial component in digital and power electronics. Unlike the BJT, which is current-controlled, the MOSFET is controlled by the voltage applied to its gate terminal. This voltage determines the flow of charge carriers through the device, allowing it to function as an efficient switch.

The MOSFET consists of four terminals: gate, source, drain, and body (or substrate). The gate terminal is insulated from the channel (between the source and drain) by a thin layer of oxide, which gives the MOSFET its high input impedance and low power consumption characteristics. When a voltage is applied to the gate, it creates an electric field that controls the conductivity of the channel, allowing or blocking current flow between the drain and the source.

MOSFETs are categorized into two types: n-channel and p-channel, depending on the type of charge carriers involved. They are widely used in digital circuits, power management systems, and microprocessors due to their fast switching speeds and high efficiency in controlling large currents with minimal power consumption.

Difference Between BJT and MOSFET

Here’s a detailed comparison of BJT and MOSFET based on different characteristics:

CharacteristicBJTMOSFET
Full FormBipolar Junction TransistorMetal-Oxide-Semiconductor Field-Effect Transistor
Control TypeCurrent-controlledVoltage-controlled
Charge CarriersUses both electrons and holes (bipolar)Uses either electrons (n-channel) or holes (p-channel)
Switching SpeedSlower switching speedFast switching speed
Power ConsumptionHigher power consumption due to base currentLower power consumption due to voltage control
Input ImpedanceLow input impedanceVery high input impedance
ApplicationAmplification, high-current applicationsDigital circuits, power electronics, switching applications
Thermal StabilityLess thermally stableMore thermally stable
GainHigh current gainLower current gain but better efficiency
CostTypically cheaperGenerally more expensive due to better performance

Conclusion

Both BJTs and MOSFETs are valuable components in electronic circuits, but they cater to different needs.BJTs are more suitable for applications that demand significant current amplification, whereas MOSFETs excel in digital circuits and power management systems because of their energy efficiency and fast switching capabilities. The choice between using a BJT or MOSFET depends largely on the specific requirements of the circuit, such as speed, power efficiency, and cost considerations.

In conclusion, understanding the fundamental differences between BJT and MOSFET allows designers and engineers to select the right transistor for the job, ensuring optimal performance in their circuits.
