Discover the key differences between diode and transistor in this comprehensive guide. Learn what a diode and transistor are, and explore their unique roles in electronic circuits.
In the world of electronics, both diodes and transistors play crucial roles, but they perform different functions and have distinct characteristics. Understanding the differences between these two components is key for anyone interested in electronic circuits. In this article, we’ll explore what a diode is, and what a transistor is, and clearly explain the differences in a tabulated format.
What is a Diode?
A diode is a simple, two-terminal semiconductor device that allows electrical current to flow in only one direction. Its primary function is to serve as a one-way switch for current, enabling it to flow through when properly biased and blocking it when not. The most common application of a diode is to convert alternating current (AC) into direct current (DC), a process known as rectification.
Different types of diodes include:
- Light Emitting Diode (LED): Emits light when current flows through it.
- Zener Diode: Works as a voltage regulator by allowing current to flow in reverse when the voltage exceeds a certain level.
- Schottky Diode: Known for its fast response time and low forward voltage drop.
Diodes are typically characterized by their anode (positive terminal) and cathode (negative terminal), which determine the direction of current flow.
What is a Transistor?
A transistor, on the other hand, is a more complex semiconductor device with three terminals. It can function as either an amplifier or a switch, depending on the configuration. Transistors are found in a wide range of electronic devices, from radios and amplifiers to computers and microprocessors, where they play a critical role in controlling and amplifying electrical signals.
The two main types of transistors are:
- Bipolar Junction Transistor (BJT): Uses three terminals—Emitter, Base, and Collector.
- Field Effect Transistor (FET): Controls current using an electric field, with terminals labeled Source, Gate, and Drain.
The ability of a transistor to control the flow of current makes it fundamental for both analog and digital circuits.
Differences Between Diode and Transistor
The following table highlights the key differences between diodes and transistors, based on their structure, function, and applications:
| Feature | Diode | Transistor |
|---|---|---|
| Definition | A two-terminal device that allows current to flow in only one direction. | A three-terminal device that amplifies or switches electrical signals. |
| Terminals | 2 terminals: Anode and Cathode | 3 terminals: Emitter, Base, and Collector (BJT) or Source, Gate, and Drain (FET) |
| Primary Function | Controls unidirectional current flow (rectification). | Amplifies signals or switches them on/off. |
| Current Flow | Only in one direction, from Anode to Cathode. | Controlled by the input signal at the base (BJT) or gate (FET), with current flow between two terminals. |
| Types | LED, Zener Diode, Schottky Diode, Photodiode, etc. | BJT, FET, MOSFET, JFET, etc. |
| Control Mechanism | Allows current to flow in one direction only. | Controls current flow based on a small signal applied to the base or gate terminal. |
| Applications | Rectification, signal modulation, voltage regulation. | Amplification, switching, digital logic operations. |
| Switching Speed | Typically slower than a transistor. | Can switch at much faster speeds, making them essential for high-speed digital circuits. |
| Amplification | It cannot amplify signals. | It can amplify electrical signals. |
| Power Handling | Handles low to moderate power levels. | It can handle low to high power levels, depending on the type and configuration. |

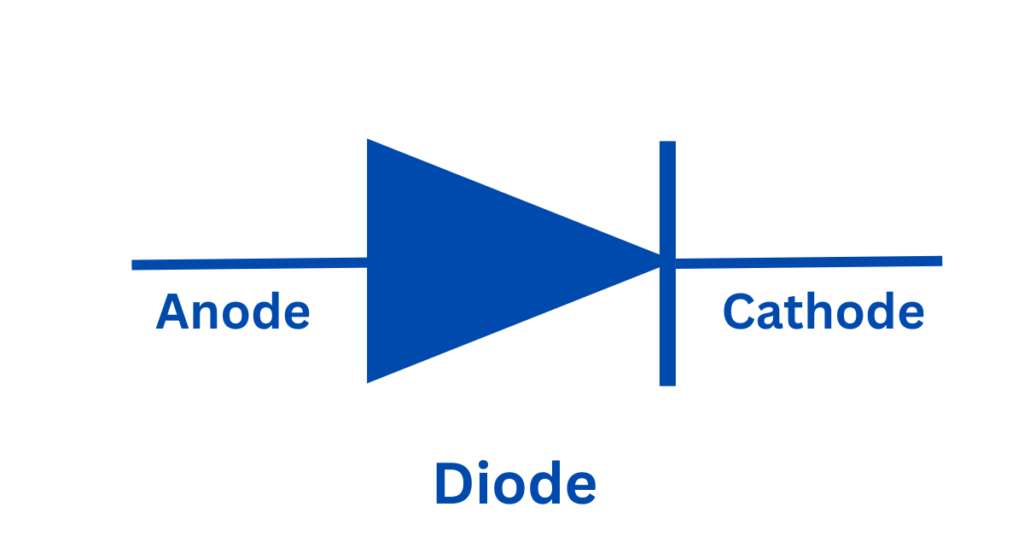

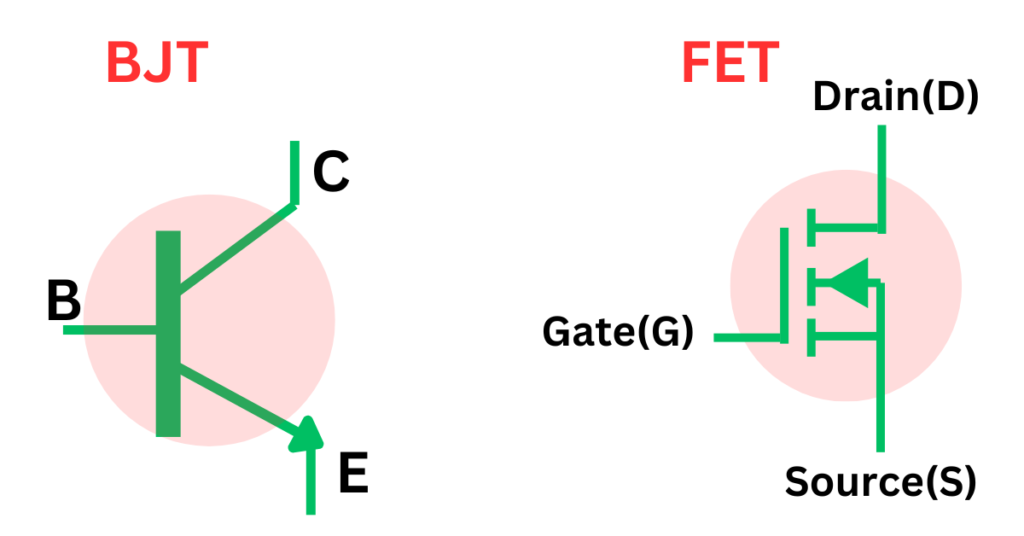

| Symbol | ||
| Material Composition | Made from semiconductor materials like silicon or germanium. | Also made from semiconductor materials, but with different doping for each region. |
Conclusion
In summary, both diodes and transistors are crucial components in the field of electronics, but they perform very different roles. While diodes mainly control the flow of current in one direction, transistors are designed to amplify signals or act as switches. Diodes are simpler and are commonly used for rectification and regulation, whereas transistors are more versatile and are integral to the functioning of amplifiers and digital circuits.
Understanding these differences is essential when working with or designing electronic systems, as each component plays a unique and irreplaceable role.
