Field-Effect Transistors (FETs) and Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) are two pivotal types of transistors used extensively in modern electronics. While both FET and MOSFET fall under the same category of transistors, they differ significantly in their structure, functionality, and applications. In this article, we will explain what a FET and a MOSFET are, followed by a detailed comparison between the two.
What is FET?

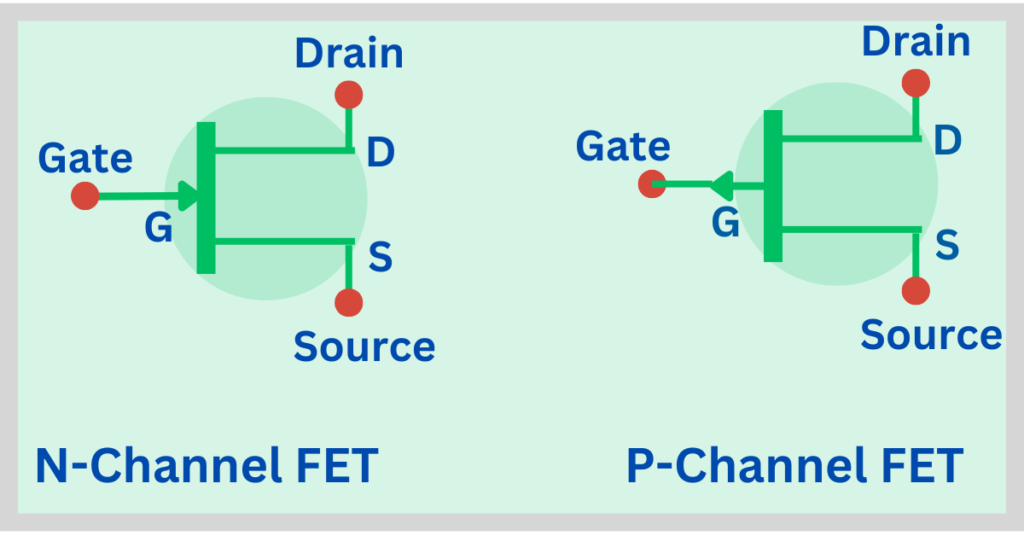

A Field-Effect Transistor (FET) is a type of transistor that controls electrical conductivity through an electric field. The FET has three key terminals: source, drain, and gate. The electric field applied to the gate terminal regulates the flow of current between the source and drain. This operation is primarily voltage-controlled, which differentiates FETs from bipolar junction transistors (BJTs) that rely on current for operation.
FETs are unipolar devices, meaning they rely on a single type of charge carrier—either electrons (n-channel) or holes (p-channel). This unipolar nature results in FETs having high input impedance and low noise levels, making them ideal for amplifying weak signals in RF amplifiers, analog circuits, and oscillators. Furthermore, FETs consume minimal power, contributing to their popularity in low-power electronic applications.
What is MOSFET?

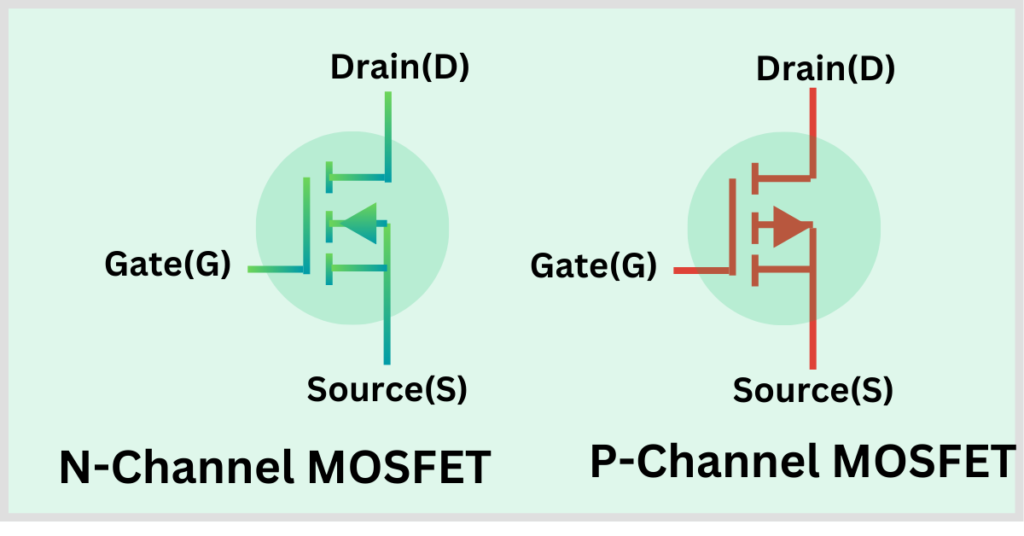

The Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a specialized subtype of the FET, where the gate is insulated from the semiconductor channel by a thin layer of oxide material. This structural difference gives MOSFETs their unique properties, particularly their higher input impedance and faster switching capabilities compared to standard FETs.
MOSFETs are further classified into two categories:
- Enhancement Mode MOSFETs: These remain in an “off” state until a voltage is applied to the gate, enhancing the current flow.
- Depletion Mode MOSFETs: These are normally “on,” allowing current to flow even when no voltage is applied to the gate; applying a negative voltage depletes the current.
Due to their high-speed switching and efficient power management, MOSFETs are widely used in digital electronics, power regulation circuits, and motor controllers. The insulated gate makes MOSFETs better suited for high-performance applications requiring precision and efficiency.
Difference Between FET and MOSFET
Here’s a breakdown of the key differences between FETs and MOSFETs:
| Characteristic | FET | MOSFET |
|---|---|---|
| Full Form | Field-Effect Transistor | Metal-Oxide-Semiconductor Field-Effect Transistor |
| Gate Insulation | No specific insulation between the gate and the channel. | Gate is insulated by a thin oxide layer |
| Operation | The voltage applied to the gate regulates the current flow. | The voltage applied to the gate enhances or depletes the current. |
| Types | Junction FET (JFET) | Enhancement Mode, Depletion Mode MOSFET |
| Input Impedance | High, but lower than MOSFETs | Extremely high due to the insulated gate |
| Switching Speed | Moderate switching speed | High-speed switching, ideal for digital circuits |
| Power Handling | Lower power-handling capacity | Better power-handling capacity, used in power electronics |
| Applications | Analog signal amplifiers, low-power circuits | Digital circuits, power supplies, motor drivers |
| Noise | Nosier | Less Noisy |
| Design Complexity | Simpler design | More complex due to the insulated gate structure |
| Cost | Generally less expensive | Typically more expensive, but with better performance |
Conclusion
FETs and MOSFETs, while similar in principle, serve different purposes depending on the requirements of the application. FETs are perfect for low-power applications like signal amplification and analog circuits due to their simple construction and high input impedance. MOSFETs, on the other hand, are well-suited for power electronics and high-speed switching applications due to their insulated gate structure and superior performance.
When selecting between a FET and a MOSFET, the decision boils down to the performance requirements, switching speed, and power-handling needs of the specific circuit. Each has its strengths, making them indispensable in modern electronic designs.
