In the world of electronics, transistors play a vital role in switching and amplifying signals. Two common types of transistors are the Junction Field-Effect Transistor (JFET) and the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET). Although both belong to the field-effect transistor family, they have distinct characteristics and applications. This article will explore the difference between JFET and MOSFET by explaining what each one is and providing a detailed comparison in tabular form.
What is JFET?

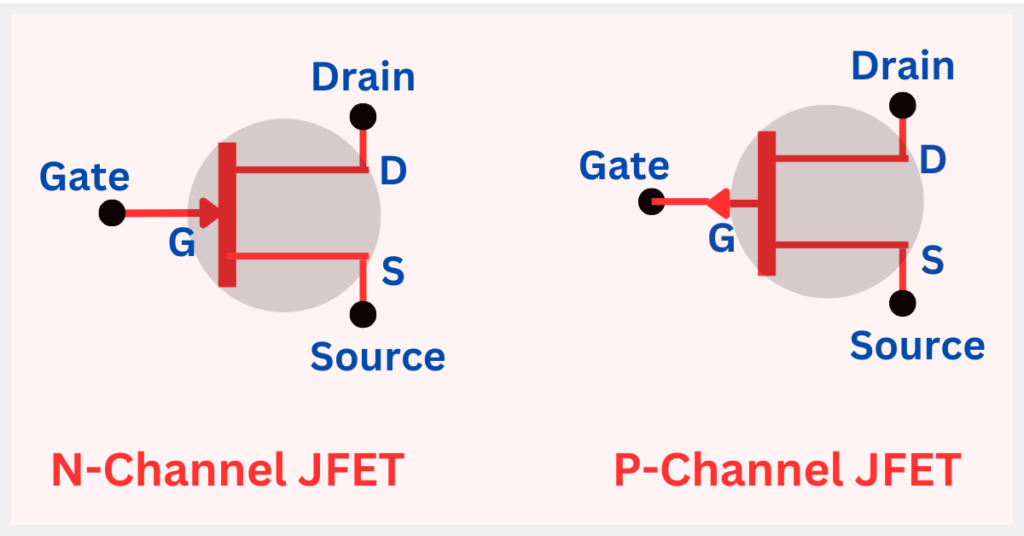

The Junction Field-Effect Transistor (JFET) is one of the simplest types of transistors, which controls current flow using an electric field. A JFET consists of three main terminals: source, drain, and gate. The gate is attached to a junction, and the voltage applied to it controls the current flowing between the source and drain.
One of the key characteristics of a JFET is that it is a depletion-mode device. This means that current flows between the source and drain even when no voltage is applied to the gate, and applying a reverse voltage to the gate reduces the current flow. JFETs are unipolar devices, meaning they operate using only one type of charge carrier—either electrons (n-channel) or holes (p-channel). These transistors are known for their high input impedance and low noise, making them ideal for low-noise applications like amplifiers.
What is MOSFET?

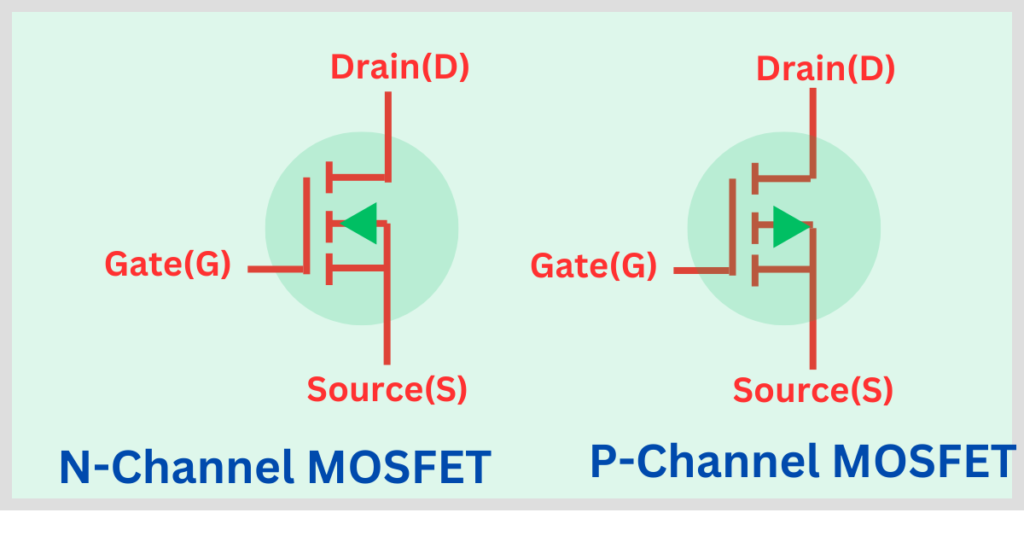

A Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) is a more advanced type of FET, where the gate is insulated from the semiconductor channel by a thin layer of oxide. This insulation allows MOSFETs to have higher input impedance than JFETs, making them more efficient in controlling the flow of current between the source and drain terminals.
MOSFETs come in two types:
- Enhancement Mode MOSFETs: These remain off until a voltage is applied to the gate, creating a conduction path.
- Depletion Mode MOSFETs: These conduct by default, and applying a gate voltage reduces the current flow.
Due to their insulated gate structure, MOSFETs offer faster switching speeds and are widely used in digital circuits, power management, and high-frequency applications.
Difference Between JFET and MOSFET
Here’s a comprehensive comparison of JFET and MOSFET based on several key parameters:
| Characteristic | JFET | MOSFET |
|---|---|---|
| Full Form | Junction Field-Effect Transistor | Metal-Oxide-Semiconductor Field-Effect Transistor |
| Gate Structure | Junction-based, no insulation | Insulated gate with a thin oxide layer |
| Operation Mode | Depletion mode (normally on) | Enhancement and Depletion modes available |
| Input Impedance | High, but lower than MOSFET | Extremely high due to the insulated gate |
| Switching Speed | Moderate switching speed | High-speed switching, ideal for digital and high-frequency applications |
| Power Handling | Lower power-handling capability | Higher power-handling capability |
| Application | Analog circuits, low-noise amplifiers | Power electronics, digital circuits, motor controllers |
| Gate Drive Requirements | Requires negative voltage for n-channel operation | Requires voltage for both turning on and off |
| Design Complexity | Simpler construction | More complex due to the gate insulation |
| Cost | Generally less expensive | Typically more expensive due to higher performance |
Conclusion
In conclusion, both JFETs and MOSFETs are essential in the design of electronic circuits, but they serve different purposes based on their characteristics. JFETs are ideal for low-power, low-noise applications such as analog signal amplification, while MOSFETs, with their insulated gate, are better suited for high-speed switching and power management tasks in digital circuits. The decision between using a JFET or MOSFET largely depends on the requirements of the specific application, such as the needed switching speed, power-handling capacity, and input impedance.
By understanding the differences between these two types of transistors, engineers can make informed choices in selecting the right component for their projects.
