Discover the key difference between LED and Photodiode: LEDs convert electrical energy into light, while photodiodes convert light into electrical energy. Learn their working principles, applications, and more.

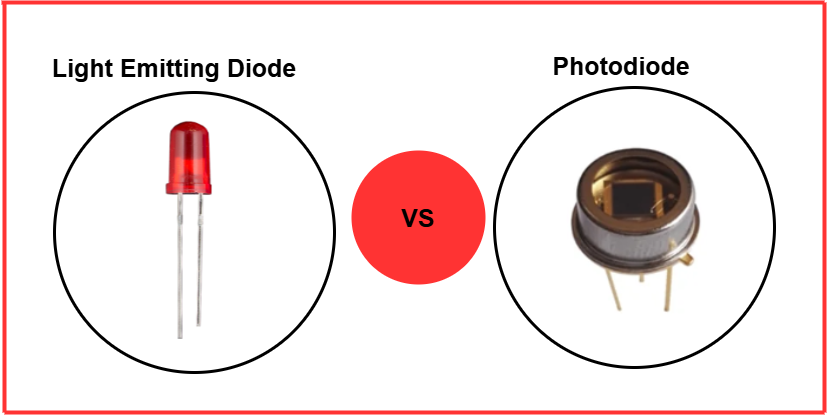

LED and Photodiode are semiconductor-based electronic devices that interact with light and electricity, but they serve opposite purposes. An LED (Light Emitting Diode) converts electrical energy into light. A Photodiode converts light energy into electrical energy.
Due to their contrasting functions, LEDs and photodiodes are used in different applications. This article provides a detailed comparison to help understand their working principles, characteristics, and applications.
What is an LED?
A Light Emitting Diode (LED) is a semiconductor device that emits light when an electric current flows through it. It consists of a PN junction made by combining p-type and n-type semiconductor materials. LEDs operate on the principle of electroluminescence, where electrical energy is directly converted into light energy, making them efficient and widely used in various applications.

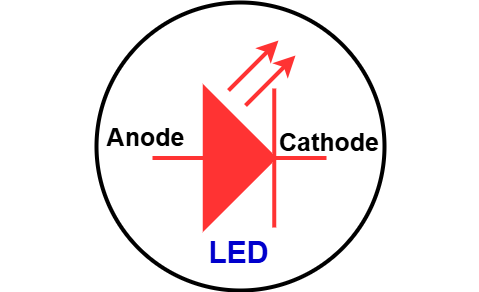

A typical LED consists of two electrodes, namely the anode and the cathode. The anode is the metallic terminal connected to the p-region, while the cathode is the metallic contact attached to the n-region. When the anode is connected to the positive terminal of a power supply and the cathode to the negative terminal, the LED becomes forward-biased, allowing current to flow and enabling light emission through the process of electroluminescence.
The PN junction in an LED plays a crucial role in its operation. When forward biased, electrons from the n-region and holes from the p-region move toward each other and recombine at the depletion region. This recombination releases energy in the form of photons, producing light. The color of emitted light depends on the bandgap energy of the semiconductor material used.
LEDs are made from materials like Gallium Arsenide (GaAs), Gallium Phosphide (GaP), and Indium Gallium Nitride (InGaN). These materials determine the wavelength and color of the emitted light, such as red, green, blue, and white. Unlike conventional bulbs, LEDs do not rely on a filament or gas, making them more durable and energy-efficient.
One major advantage of LEDs is their low power consumption, making them ideal for energy-saving applications. They also have a long lifespan, high brightness, and fast switching speed, which is useful in traffic signals, digital displays, and indicator lights. Their small size allows for integration into compact electronic devices and decorative lighting systems.
LED technology has evolved, leading to advancements like high-brightness LEDs, organic LEDs (OLEDs), and micro LEDs. These innovations have revolutionized display screens, smart lighting, and medical applications. With continuous research, LEDs are becoming even more efficient, cost-effective, and environmentally friendly, replacing traditional lighting solutions across various industries.
What is a Photodiode?
A photodiode is a semiconductor device that converts light energy into electrical energy. It is a PN junction diode that operates based on the photoelectric effect. Unlike standard diodes, a photodiode is highly sensitive to light and is designed to work in reverse bias mode. It is used in applications where light detection and conversion into electrical signals are required, such as solar panels, optical communication, and safety equipment.
The working principle of a photodiode is based on photoconductivity. This phenomenon states that when a semiconductor material absorbs light, it generates electron-hole pairs, which increase the material’s electrical conductivity. The number of charge carriers generated is directly proportional to the intensity of incident light. This principle enables the photodiode to function as a light sensor, responding to different light levels.
When light falls on the PN junction of the photodiode, its energy excites the electrons in the semiconductor material. These excited electrons break free from their atomic bonds, leaving behind holes. This process generates electron-hole pairs in the depletion region of the junction. The movement of these charge carriers creates a small electric current, which can be measured and used for various applications.
A photodiode is specifically designed to operate in reverse bias mode, where the anode is connected to the negative terminal and the cathode to the positive terminal of a power supply. In reverse bias, the depletion region expands, reducing the dark current and making the diode more sensitive to incoming light. This setup ensures efficient light detection with minimal noise interference.
When high-energy light photons strike the depletion region of a photodiode, they transfer energy to the electrons, causing an increase in temperature at the junction. This energy excites the electrons and promotes them to the conduction band, while the remaining holes stay in the valence band. The separation of charge carriers leads to the generation of an electric current.

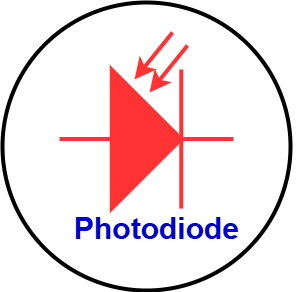

A photodiode consists of two terminals, anode and cathode, similar to a conventional diode. It is made of semiconductor materials such as silicon, germanium, or indium gallium arsenide. The PN junction is often placed under a transparent window or lens to focus light on the active region. Some photodiodes also include an anti-reflective coating to enhance light absorption.
Photodiodes are widely used in various applications due to their sensitivity to light. They are commonly found in solar panels for energy conversion, fiber optic communication for signal transmission, smoke detectors for fire safety, and automatic lighting systems. They are also used in medical imaging devices, barcode scanners, and X-ray detection systems.
Difference Between LED and Photodiode
Here is a detailed comparison between LED and Photodiode in tabular form. This table provides a clear and detailed comparison between LED and Photodiode based on multiple aspects.
| Basis of Difference | LED (Light Emitting Diode) | Photodiode |
|---|---|---|
| Definition | A PN junction semiconductor diode that converts electrical energy into light energy. | A PN junction semiconductor diode that converts light energy into electrical energy. |
| Principle of Operation | Works on the principle of electroluminescence, where charge recombination emits light. | Works on the principle of photoconductivity, where incident light generates charge carriers. |
| Circuit Symbol |  |  |
| Mode of Biasing | Operates only in forward bias. | Operates primarily in reverse bias. |
| Main Function | Converts electrical energy into light. | Converts light energy into electrical energy. |
| Semiconductor Materials | Common materials include GaAs, GaP, InGaN, and AlGaAs. | Common materials include Silicon, Germanium, and Indium-Gallium-Arsenide. |
| Leakage Current | No leakage current as it works in forward bias. | Leakage current (dark current) exists in the absence of light. |
| Effect of Reverse Biasing | Reverse biasing can permanently damage the LED. | Reverse biasing does not damage the photodiode as it is designed to operate in reverse bias. |
| Physical Structure | Encapsulated in a transparent dome-shaped epoxy resin to enhance light emission. | Contains a lens to focus light on the PN junction for efficient detection. |
| Output in the Absence of Input | No light emission when no electrical input is provided. | A small dark current flows even without incident light. |
| Applications | Used in lighting, displays, vehicle indicators, and optical communication. | Used in solar panels, optical sensors, smoke detectors, and fiber optic communication. |
| Response to Light | Does not respond to external light sources. | Highly sensitive to external light sources. |
| Power Consumption | Requires a certain voltage and current to operate efficiently. | Consumes very little power as it generates electricity from light. |
| Conversion Process | Converts electrical energy into visible or infrared light. | Converts optical signals into electrical signals. |
Conclusion
The key distinction between an LED and a Photodiode lies in their functionality. LEDs (light-emitting diodes) transform electrical energy into light, making them essential for lighting, displays, and indicators. In contrast, Photodiodes convert light energy into electrical signals, making them ideal for sensors, optical communication, and automation. Both components are vital in modern electronics, with LEDs serving as efficient light sources and Photodiodes as precise light detectors. Understanding their differences ensures the right choice for various applications in technology and innovation.
