The main difference between TVS diode and Zener diode is that TVS diodes protect circuits from transient voltage spikes, while Zener diodes regulate voltage by maintaining a constant voltage in reverse breakdown mode for steady-state applications.
TVS diodes and Zener diodes are crucial semiconductor devices with distinct roles in circuit protection and voltage regulation. Understanding their differences helps in selecting the right component for surge protection or maintaining a stable voltage in electronic circuits.
What is TVS diode?
A TVS (Transient Voltage Suppression) diode is a crucial semiconductor component that safeguards electronic circuits from unexpected voltage surges. These surges can occur due to electrostatic discharge (ESD), lightning, or switching transients. By quickly clamping excessive voltage, TVS diodes prevent damage to sensitive components and ensure circuit reliability.
TVS diodes are widely used in power lines, communication systems, automotive electronics, and industrial equipment. Their rapid response and high-energy absorption capabilities make them indispensable in environments where voltage fluctuations pose a risk to critical electronic systems. These diodes offer robust protection against electrical disturbances, enhancing the lifespan of electronic devices.
The importance of TVS diodes arises from the potential damage caused by sudden voltage transients in electronic circuits. Voltage spikes can disrupt or even destroy sensitive components, leading to system failures. Engineers and designers require efficient solutions to suppress these harmful surges, making TVS diodes essential in modern electronic protection systems.
Their ability to respond within nanoseconds and absorb high transient energy makes them ideal for modern circuit protection. By integrating TVS diodes into electronic designs, manufacturers can enhance the durability of devices, reduce maintenance costs, and ensure uninterrupted operation. These benefits make them widely adopted across multiple industries and applications.
A TVS diode operates in reverse bias mode, meaning its anode is connected to the ground while the cathode is linked to the voltage supply. Under normal conditions, the diode remains inactive, allowing minimal leakage current. This ensures that the diode does not interfere with normal circuit operation during stable voltage conditions.
When an unexpected voltage spike exceeds its breakdown voltage, the diode rapidly becomes conductive. This action effectively clamps the excessive voltage to a safe level, diverting surge currents away from sensitive components. Once the transient event is over, the diode returns to its non-conducting state, ensuring seamless circuit operation without affecting normal voltage levels.
TVS diodes possess several essential characteristics that make them highly effective in transient suppression. Their ultra-fast response time, often within nanoseconds, ensures immediate protection against voltage spikes. These diodes also feature a low clamping voltage, maintaining safe levels without excessive leakage, thus preventing further stress on circuit components.
Additionally, they can handle high surge currents, preventing damage to electronic circuits. TVS diodes come in both unidirectional and bidirectional forms. Unidirectional diodes function similarly to rectifier diodes, while bidirectional variants protect against both positive and negative transients. Their availability in various breakdown voltage ratings makes them suitable for a wide range of applications.
The applications of TVS diodes span multiple industries. They are commonly used in electrostatic discharge (ESD) protection for microcontrollers, USB ports, and integrated circuits. These diodes also play a crucial role in protecting data transmission and power distribution systems from lightning-induced surges that could otherwise cause severe circuit damage.
In the automotive sector, TVS diodes protect electronic control units (ECUs) and vehicle sensors from voltage transients. Additionally, industrial automation systems incorporate TVS diodes to protect motor drives and other sensitive equipment from transient voltage fluctuations. This ensures operational stability and prevents costly damage to critical electronic infrastructure.
TVS diodes are classified into two main types based on their functionality. Unidirectional TVS diodes are specifically designed for DC circuits and act like rectifier diodes during normal operation. They conduct only when exposed to a voltage spike above their breakdown threshold, providing an effective solution for transient suppression in DC-powered systems.
On the other hand, bidirectional TVS diodes are suitable for AC circuits as they can clamp both positive and negative voltage transients. This versatility allows engineers to select the appropriate type of TVS diode based on circuit requirements, ensuring optimal protection in both direct and alternating current applications, depending on system needs.
A TVS diode is a vital component in protecting modern electronic devices from transient voltage spikes. Understanding its function, characteristics, and applications helps engineers design more reliable and durable circuits. By integrating TVS diodes into electronic systems, manufacturers can ensure effective protection against electrical disturbances, enhancing product performance and longevity.

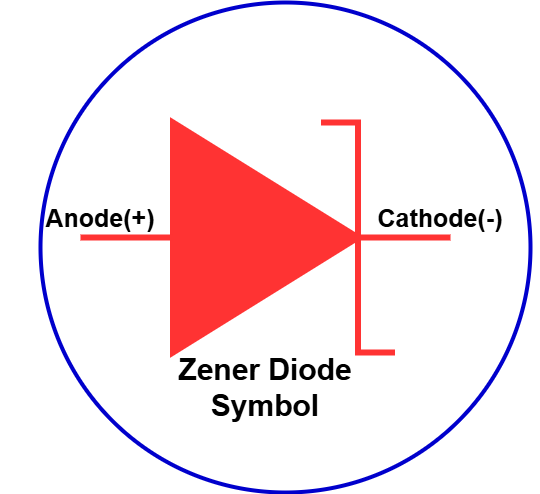

What is Zener Diode?
A Zener diode is a special type of semiconductor diode designed to operate in the reverse breakdown region without getting damaged. Unlike regular diodes, which block reverse current, a Zener diode allows current to flow in the reverse direction when the voltage exceeds a specific breakdown voltage, known as the Zener voltage.
The structure of a Zener diode is similar to a standard PN junction diode. It consists of a heavily doped P-type semiconductor and a heavily doped N-type semiconductor, forming a PN junction. The high doping concentration reduces the depletion region width, allowing the diode to break down at a precise voltage without damage.
The construction of a Zener diode involves diffusing impurities into a silicon wafer to create a heavily doped PN junction. This high doping concentration ensures that the breakdown voltage remains well-defined. The diode is then encapsulated in a protective package to prevent environmental damage and ensure reliable operation.
The working principle of a Zener diode is based on the Zener breakdown and avalanche breakdown mechanisms. At lower breakdown voltages (typically below 5V), the Zener effect dominates, where a strong electric field causes electrons to tunnel through the depletion region. At higher voltages, the avalanche effect occurs, where impact ionization generates free carriers, allowing conduction.
Zener diodes exhibit unique characteristics that make them ideal for voltage regulation. They maintain a nearly constant voltage across their terminals once breakdown occurs. Their voltage tolerance is precise, with minimal variation due to temperature changes. Additionally, Zener diodes have a sharp breakdown voltage and exhibit fast response to voltage fluctuations.
Zener diodes have various applications, primarily in voltage regulation and circuit protection. They are widely used in power supply circuits to provide a stable reference voltage. They also serve as voltage limiters in protection circuits, preventing excessive voltage from damaging electronic components. Other uses include waveform clipping and surge suppression.
There are different types of Zener diodes based on their voltage ratings and power-handling capacities. Low-power Zener diodes are used in small circuits, while high-power Zener diodes are designed for industrial applications. Surface-mount Zener diodes are commonly used in compact electronic devices. Some Zener diodes are optimized for low noise and precision voltage references.
In conclusion, Zener diodes play a crucial role in maintaining voltage stability and protecting electronic circuits. Their ability to operate in the breakdown region without damage makes them indispensable in modern electronics, ensuring reliable performance in various applications, including power supplies, voltage regulation, and circuit protection.

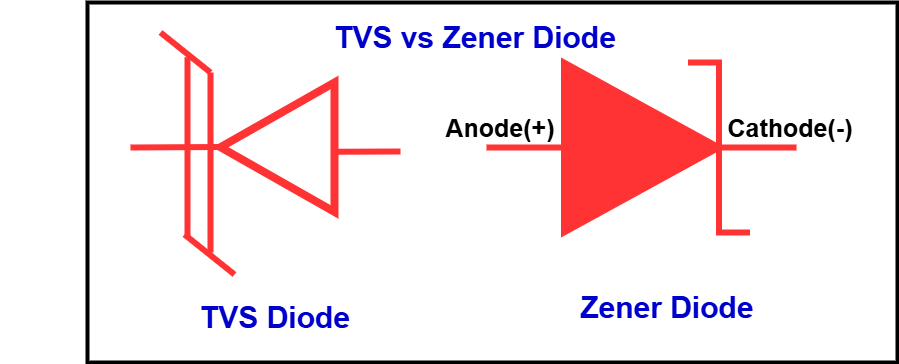

Difference between TVS Diode and Zener Diode
The table below provides a clear comparison between TVS diodes and Zener diodes based on their function, behavior, and applications.
| Feature | TVS Diode | Zener Diode |
|---|---|---|
| Purpose | Protects circuits from transient voltage spikes | Regulates voltage in circuits |
| Operation | Clamps excessive voltage during transient events | Provides a stable voltage reference under continuous operation |
| Response Time | Very fast (within nanoseconds) | Relatively slow compared to TVS diodes |
| Breakdown Mechanism | Designed for short-duration high-energy pulses | Operates continuously in the breakdown region |
| Current Handling | Can handle high peak surge currents | Handles low continuous current |
| Usage | Used for surge protection in power lines, communication systems, and automotive electronics | Used in voltage regulation, voltage reference, and circuit protection in low-power applications |
| Power Dissipation | Can absorb large transient energy without damage | Limited power dissipation capability |
| Reverse Breakdown Voltage | Designed for transient overvoltage protection | Designed for continuous voltage regulation |
| Clamping vs. Regulation | Clamps transient voltage surges to a safe level | Maintains a constant voltage output |
| Leakage Current | Typically higher in the off state | Lower leakage current in normal operation |
| Temperature Sensitivity | Less affected by temperature variations | More affected by temperature changes |
| Availability in Bidirectional Form | Available in both unidirectional and bidirectional types | Mostly available in unidirectional form |
| Cost | Generally more expensive due to transient protection capability | More affordable for basic voltage regulation |
Conclusion
TVS diodes and Zener diodes serve distinct roles in electronic circuits, despite both operating in reverse breakdown mode. TVS diodes are designed for transient voltage suppression, offering rapid response and high surge current handling to protect circuits from sudden spikes.
In contrast, Zener diodes regulate voltage continuously, ensuring a stable output for power supplies and reference circuits. While TVS diodes excel in surge protection, Zener diodes are better suited for steady-state voltage regulation. Choosing between them depends on the specific application—whether transient protection or voltage stabilization is required. Understanding their differences helps engineers design more reliable and efficient circuits.
