Learn about the 1N4148 diode, its pin configuration, features, specifications, working, and applications. Discover why this high-speed switching diode is widely used in rectification, signal filtering, voltage protection, and high-frequency circuits.
The 1N4148 is a widely used silicon switching signal diode known for its reliability and affordability. Following JEDEC naming conventions, it remains one of the most enduring and popular switching diodes. It is ideal for high-speed switching applications up to approximately 100 MHz, featuring a reverse recovery time of 4 nanoseconds or less.
Texas Instruments introduced the 1N914 diode in 1960, registering it with JEDEC by 1961. That same year, 11 manufacturers began second-sourcing the diode. The 1N4148 was later registered at JEDEC in 1968 as a silicon switching signal diode designed for military and industrial applications. Texas Instruments had already listed their version in an October 1966 data sheet, and it was subsequently second-sourced by multiple manufacturers. Both the 1N914 and 1N4148 remain widely used in low-current applications due to their reliability and efficiency.
The 1N4148 became the most widely mass-produced switching diode, effectively replacing the older 1N914. Both diodes are interchangeable and serve as cross-reference replacements for each other. Initially, their primary difference lay in their leakage current specifications. However, modern manufacturers now list nearly identical specifications for both. For instance, Vishay( American manufacturer of discrete semiconductors) provides the following leakage current ratings for both diodes:
- 25 nA at -20 V, 25°C
- 5 μA at -75 V, 25°C
- 50 μA at -20 V, 150°C

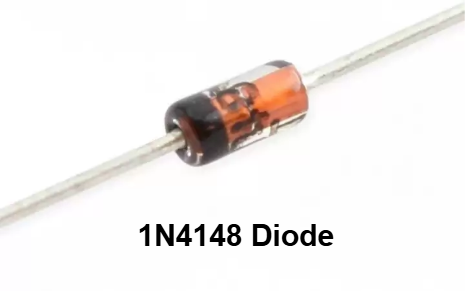

What is a 1N4148 Diode?
The 1N4148 is a high-speed switching diode designed primarily for fast switching applications. It functions similarly to a standard switch, offering high resistance below a certain threshold voltage and low resistance once the voltage exceeds that threshold. This diode is widely available in a compact size at a low cost, making it a popular choice for various applications.
When selecting a 1N4148 diode, key factors include its fast reverse recovery time and power dissipation, which typically ranges from 80 milliwatts to 1 kilowatt. Due to its rapid switching capability, it is commonly used in high-speed rectification, fast-switching circuits, and protection applications in home electronics and telecommunications industries.
1N4148 Diode Pin Configuration
The 1N4148 diode consists of two pins:
- Pin 1 (Anode): This pin is the positive terminal of the diode, allowing current to flow into the diode when forward biased.
- Pin 2 (Cathode): This is the negative terminal, where current exits the diode when conducting.
In operation, the diode permits current flow only in one direction—from the anode to the cathode—preventing reverse current. This property makes it ideal for switching and rectification applications. The proper connection of these pins is essential for ensuring correct functionality in an electronic circuit.
Specifications of 1N4148 Diode
Absolute Maximum Ratings (Stress ratings; refer to the datasheet for recommended values)
- VRRM: 100 V (Maximum repetitive reverse voltage)
- IO: 200 mA (Average rectified forward current)
- IF: 300 mA (DC forward current)
- If: 400 mA (Recurring peak forward current)
- IFSM: 1 A (at 1 s pulse width); 4 A (at 1 μs pulse width — non-repetitive peak forward surge current)
Electrical and Thermal Characteristics
- VF: 1 V (Maximum forward voltage at 10 mA)
- VR: 75 V (at 5 μA); 100 V (at 100 μA — minimum breakdown voltage and reverse leakage current)
- trr: 4 ns (Maximum reverse-recovery time)
- PD: 500 mW (Maximum power dissipation
Diodes equivalent to the 1N4148 include 1N914, 1N914A, 1N914B, 1N916, 1N916A, 1N916B, 1N4448, 1N4448WS, 1N4448W, 1N4148WS, and others.
The 1N4148 is a highly versatile, high-frequency switching diode available in various package types, including DO-35, DO-14, SOD123, LL34, SOD323, SOT23, SOD523, and 0805. Its flexibility, ease of use, and affordability make it suitable for a wide range of applications, particularly in high-speed switching and signal processing circuits.
1N4148 Diode Modes of Operation
The 1N4148 is a silicon-based switching diode designed for high-speed applications. It operates in two primary modes: forward bias and reverse bias.
- Forward Bias Mode: When forward biased, the diode acts like a closed switch, allowing current to flow through it. In this state, if an LED is used as a load, current passes through the LED, causing it to turn ON.
- Reverse Bias Mode: When reverse biased, the diode functions as an open switch, preventing current flow. In this case, no current reaches the LED, and it remains OFF.
These characteristics make the 1N4148 ideal for fast-switching applications. Its ability to control current flow efficiently is widely utilized in signal processing and protection circuits. The equivalent circuits for both operational states illustrate how the diode switches between conducting and non-conducting states.
Safe Operation of the 1N4148 Diode in a Circuit
To ensure the long-term performance of the 1N4148 diode in electronic projects, follow these safety guidelines:
- Correct Polarity: Identify the cathode terminal, usually marked with a band, and connect it properly within the circuit.
- Voltage and Current Limits: Avoid exceeding the specified voltage and current ratings to prevent damage.
- Temperature Range: Operate and store the diode within the recommended temperature range of -65°C to +175°C.
By adhering to these precautions, the diode will function reliably without the risk of failure or reduced efficiency.
How to Use the 1N4148 Diode?
The 1N4148 diode can be used in various applications, including temperature sensing. Below is a simple temperature sensor circuit that utilizes the 1N4148 diode due to its high-speed switching capability, 100V voltage rating, 450mA current rating, and 4ns switching speed.
In this circuit, the 1N4148 diode functions as a temperature sensor because its electrical characteristics change with temperature variations. As the temperature shifts, the diode’s voltage drop also changes, allowing it to act as a temperature-sensitive component.
Required Components:
- Resistors: 1.5KΩ, 15KΩ
- Variable Resistors (VR1 & VR2): 10KΩ
- Operational Amplifier: IC741
- Diodes: 1N4148, Zener Diode (ZD1 – 5.6V)
While the 1N4148 diode is not a dedicated temperature sensor, it can be useful in low-precision applications where only basic temperature detection—such as identifying if an element is hot or cold—is required.
The circuit mentioned earlier allows for simple temperature measurement using a multimeter. The diode’s voltage drop varies with temperature, enabling easy monitoring.
To improve accuracy, variable resistors VR1 and VR2 should be adjusted using a thermometer for calibration. The measured voltage on the multimeter can then be correlated to temperature in degrees Celsius, making this a practical solution for basic temperature sensing.
Applications of the 1N4148 Diode
The 1N4148 diode is widely used in various electronic applications due to its high-speed switching, reliability, and low cost. Some key applications include:
- AC to DC Conversion: Used in rectifier circuits to convert alternating current (AC) to direct current (DC).
- Voltage Spike Protection: Prevents damage to sensitive electronic components by blocking sudden voltage surges.
- Digital Logic Circuits: Commonly used in logic gates and digital switching applications.
- General & High-Speed Switching: Ideal for circuits requiring fast response times.
- Component Protection: Protects transistors and other components from unintended voltage fluctuations.
- Rectification & Signal Filtering: Helps in waveform shaping and noise reduction in signal processing.
- Voltage Blocking: Prevents unwanted voltage flow in specific circuit sections.
- Power Supply & Battery Charger Circuits: Used in power regulation and voltage-doubling circuits.
Conclusion
The 1N4148 diode is a high-speed switching diode known for its compact size, fast switching capabilities, and reliability. It is widely used in applications such as high-frequency signal isolation, industrial control circuits, computer motherboards, communication systems, and television circuits.
This article covered an overview of the 1N4148 diode, including its pin configuration, features, specifications, working principles, characteristics, and applications. Being a silicon-based switching signal diode, the 1N4148 remains one of the most widely used and long-lasting diodes due to its consistent performance and affordability. It is highly effective in switching applications up to 100 MHz, with a reverse-recovery time of no more than 4 ns.
