An ESD (Electrostatic Discharge) protection diode is a specialized semiconductor device designed to protect sensitive electronic components from sudden voltage spikes caused by electrostatic discharge. It functions by clamping excessive voltage and safely diverting the transient current to the ground, preventing damage to integrated circuits (ICs) and other delicate electronics.
ESD diodes are commonly used in USB ports, HDMI interfaces, automotive electronics, and other applications where external connections expose circuits to ESD risks. They are also known as Transient Voltage Suppression (TVS) diodes, though TVS diodes cover broader surge protection beyond just ESD events.
How ESD diode Works?
An ESD (Electrostatic Discharge) diode protects sensitive electronic components from voltage spikes caused by electrostatic discharge. During normal operation, it remains in a high-impedance state, allowing signals to pass without interference. However, when an ESD event occurs, the voltage rises suddenly, posing a threat to integrated circuits (ICs) and other sensitive components.
If the voltage surpasses the diode’s breakdown voltage, the ESD diode activates, providing a low-resistance path to the ground. This process, known as voltage clamping, prevents excessive voltage from damaging the circuit. By absorbing and safely redirecting the high-current surge, the diode ensures that the ICs and other protected components remain unaffected.
Once the transient event ends, the ESD diode automatically returns to its high-impedance state, restoring normal circuit operation. Designed for fast response times and low capacitance, ESD diodes minimize signal distortion. They are widely used in USB ports, HDMI interfaces, Ethernet connections, and automotive electronics, offering reliable protection against electrostatic discharge and other transient voltage surges.
Why is ESD diode Important?
An ESD (Electrostatic Discharge) diode is important because it protects sensitive electronic components from sudden voltage spikes caused by electrostatic discharge. Modern electronic devices, especially those with integrated circuits (ICs), are highly susceptible to ESD damage, which can cause immediate failure or degrade performance over time. Without ESD protection, devices may experience malfunctions, reduced lifespan, or complete failure.
ESD diodes provide a fast response time, clamping excessive voltage within nanoseconds to prevent damage. They act as a safeguard by diverting harmful surges away from critical components. This protection is essential for devices with externally exposed ports, such as USB, HDMI, Ethernet, and automotive electronics, where ESD risks are higher.
Additionally, ESD diodes contribute to overall system reliability and compliance with industry standards like IEC 61000-4-2, which define ESD immunity requirements. By preventing costly repairs and replacements, ESD diodes enhance product durability and ensure smooth operation in consumer electronics, industrial equipment, and automotive applications. Their role in circuit protection makes them indispensable in modern electronic design.
Where is ESD Diode Used?
ESD (Electrostatic Discharge) diodes are widely used in electronic devices to protect sensitive components from voltage surges. They are commonly found in circuits with externally exposed ports and interfaces where ESD risks are high. Here are some key applications:
- Consumer Electronics:
- Used in smartphones, laptops, tablets, and gaming consoles to protect USB, HDMI, and audio ports.
- Prevents ESD damage from human contact or environmental factors.
- Communication Interfaces:
- Protects Ethernet, USB, HDMI, DisplayPort, and Thunderbolt connections in networking and multimedia devices.
- Ensures stable data transmission by minimizing voltage spikes.
- Automotive Electronics:
- Integrated into ECUs (Electronic Control Units), infotainment systems, and sensors to protect against ESD and voltage transients.
- Ensures reliability in harsh automotive environments.
- Industrial Equipment:
- Used in factory automation, IoT devices, and embedded systems to safeguard against ESD from static charges or machine operations.
- Increases equipment lifespan and minimizes downtime.
- Medical Devices:
- Found in wearable health monitors, diagnostic equipment, and imaging systems where sensitive electronics must be protected.
- Prevents malfunction due to electrostatic discharge in medical environments.
- Aerospace and Military Electronics:
- Protects radar systems, avionics, and communication devices from ESD damage.
- Ensures reliability in extreme environmental conditions.
By integrating ESD protection diodes into these applications, manufacturers enhance product durability, compliance with safety standards, and overall performance.
Types of ESD protection diodes
ESD protection diodes come in various types, each designed to suit specific applications based on voltage ratings, response time, and capacitance. Below are the main types:
1. TVS (Transient Voltage Suppression) Diodes
- Designed to clamp high-voltage transients and divert excess current away from sensitive components.
- Available in unidirectional (for DC circuits) and bidirectional (for AC circuits) configurations.
- Used in USB, HDMI, automotive electronics, and power supply protection.
2. Zener Diodes for ESD Protection
- Function similarly to TVS diodes but provide a more stable clamping voltage.
- Used in low-power circuits and voltage regulation applications.
- Previously used for ESD protection but was replaced by specialized TVS diodes in most cases.
3. Low-Capacitance ESD Diodes
- Designed specifically for high-speed data lines such as USB 3.0, HDMI, DisplayPort, and PCIe.
- Prevents signal distortion while providing effective ESD protection.
4. Array ESD Diodes
- Multiple ESD diodes integrated into a single package.
- Protects multiple data lines, reducing PCB space and simplifying circuit design.
- Commonly used in smartphones, tablets, and laptops.

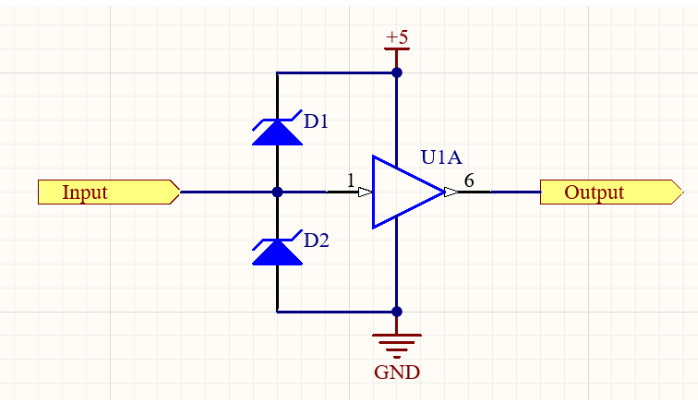

5. Rail-to-Rail ESD Protection Diodes
- Provide protection between power rails (Vcc and GND) without interfering with normal circuit operation.
- Suitable for mixed-signal and low-voltage applications.
Each type of ESD diode is selected based on system requirements such as voltage tolerance, response time, and capacitance, ensuring optimal protection for electronic circuits.
