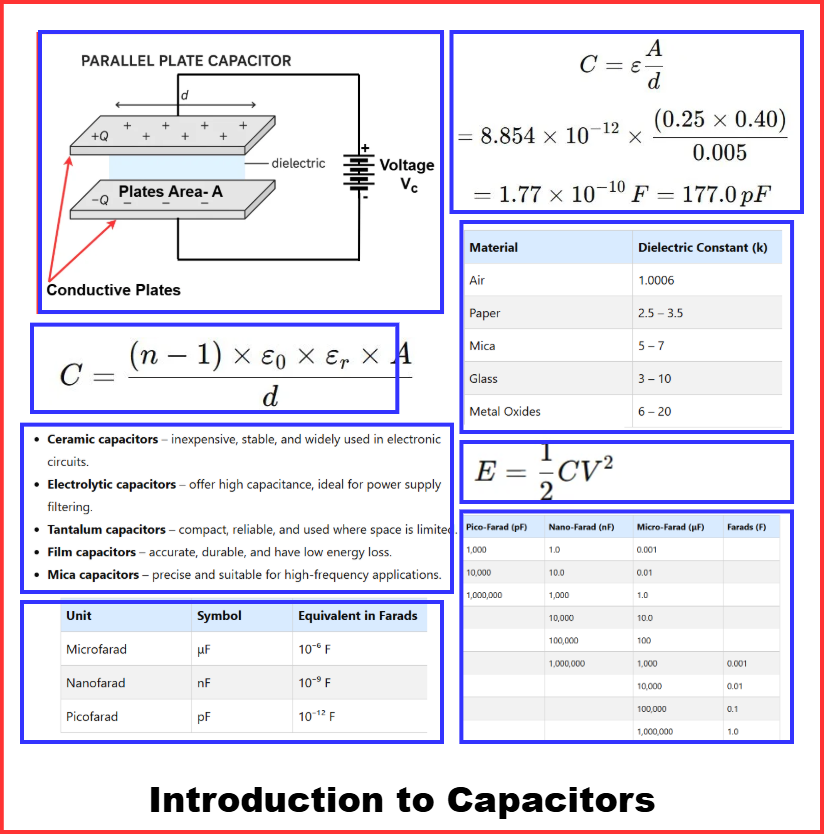

Introduction to Capacitor, Capacitance and Charge

A capacitor is a simple yet powerful passive electronic component that stores energy in the form of an electrical charge. This introduction to capacitors explains how they work, their role in circuits, and why they are essential in electronics. When connected to a voltage source, a capacitor holds the charge across its plates, creating a potential difference—just like a miniature rechargeable battery.

Capacitors are found in almost every electronic device, from mobile phones to power plants. Whether it’s stabilizing voltage, filtering noise, or tuning a circuit, the capacitor is essential to modern electronics.

What Is a Capacitor?

At its core, a capacitor consists of two or more conductive plates separated by an insulating material called a dielectric. The plates are usually made of metal foil, while the dielectric can be air, ceramic, plastic, paper, or electrolytic gel.

Because of this insulating layer, DC current cannot pass through a capacitor. Instead, it stores an electric charge, allowing voltage to exist across the plates. In contrast, in AC circuits, capacitors allow current to appear as if it’s flowing through, due to the alternating nature of the voltage.

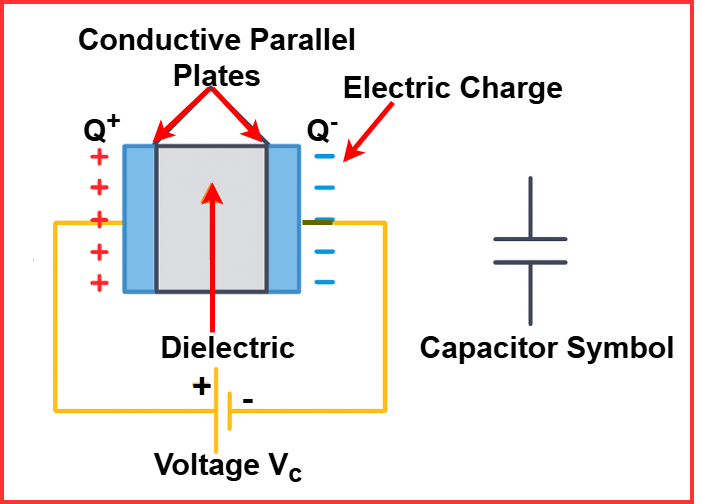

Basic Principle of Capacitor Operation

When a DC voltage is applied, one plate of the capacitor accumulates positive charge, while the other collects an equal negative charge. This process continues until the voltage across the plates equals the supply voltage. At this point, the capacitor is fully charged.

The current that charges the capacitor is known as the charging current, which decreases gradually as the voltage builds up. Once charged, no further DC current flows through the capacitor.

The amount of charge a capacitor stores depends on:

• The voltage applied (V)
• The capacitance (C)

When a voltage is applied across a capacitor and the charge on its plates is measured, the ratio of the charge (Q) to the voltage (V) gives the capacitance (C) of the capacitor. It is expressed as:

C = Q / V

This equation can also be rearranged to express the charge stored on the plates as:

Q = C × V

Introduction to Capacitors – Capacitance & Its Units

The capacitance of a capacitor represents its ability to store electrical energy. It is measured in Farads (F) — named after the physicist Michael Faraday. A capacitor has 1 Farad of capacitance if it stores 1 Coulomb of charge when a 1 Volt potential difference exists between its plates.

However, since one Farad is a very large unit, capacitors are usually rated in:

Standard Units of Capacitance

Using the information above, we can create a simple table to easily convert between picoFarads (pF), nanoFarads (nF), microFarads (μF), and Farads (F), as shown below.

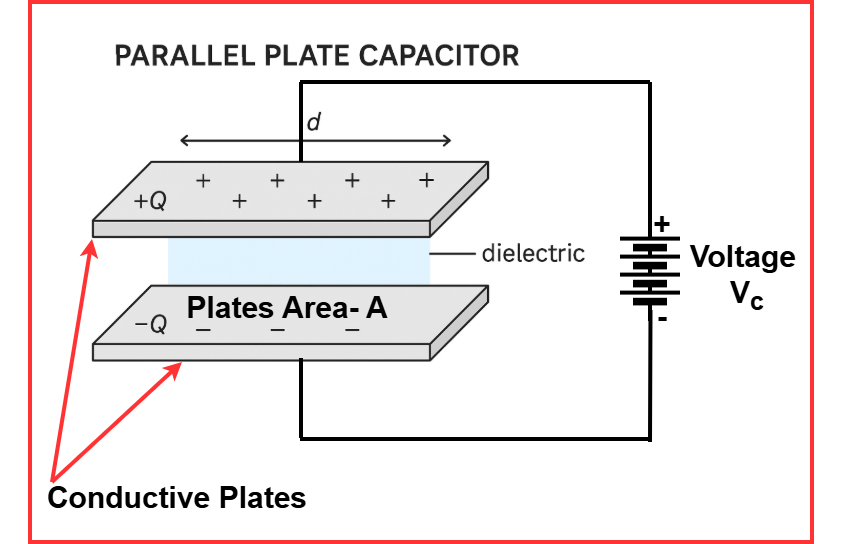

Capacitance of a Parallel Plate Capacitor

The capacitance of a parallel plate capacitor depends directly on the area A (in m²) of the smaller of the two plates and inversely on the distance d (in metres) separating them, also known as the dielectric thickness.

The general formula for the capacitance is:

where:

• C = Capacitance (Farads)
• ε = Permittivity of the dielectric material
• A = Plate area (m²)
• d = Distance between plates (m)

From this equation, capacitance increases when:

• Plate area (A) increases
• Distance between plates (d) decreases
• The dielectric material has a higher permittivity (ε)

The permittivity of free space, denoted as ε₀​, is a constant with a value of 8.854×10⁻¹² farads per metre. To simplify calculations, it can also be expressed as ε₀=1/(4π××10⁹​), or approximately 8.85 picofarads per metre. When using this form, the resulting capacitance will be in picofarads (pF) instead of farads (F).

In practical capacitors, the plates are usually separated by an insulating material or dielectric rather than a perfect vacuum. Since the permittivity of dry air is nearly the same as that of a vacuum, it is often used as an equivalent in capacitance calculations.

Introduction to Capacitors Example No1

A parallel plate capacitor is made using two aluminum plates, each measuring 25 cm × 40 cm, separated by a 5 mm air gap. The space between the plates is filled with dry air, which acts as the dielectric medium. Determine the capacitance of this capacitor.

Given Data:

• Plate length, L=25 cm=0.25 m
• Plate width, W=40 cm=0.40m
• Distance between plates, d=5 mm=0.005m
• Dielectric medium: dry air (dielectric constant k≈1)
• Permittivity of free space, ε₀=8.854×10⁻¹² F/m

This example shows how even small physical changes in the design—like plate area or spacing—can dramatically affect capacitance.

Introduction to Capacitors – Dielectric Material

Apart from the size of the conductive plates and the distance between them, another important factor affecting a capacitor’s capacitance is the dielectric material between the plates. This property is known as the permittivity (ε) of the dielectric.

The plates are usually made of metal foil or film to allow easy movement of electrons, while the dielectric is always an insulator. Different insulating materials vary in how well they block electric charge.

Common dielectric materials include air, paper, ceramic, glass, oil, and polyester. Each material influences the capacitance based on its ability to store electrical energy.

The factor by which a dielectric increases capacitance compared to air is called the Dielectric Constant (k). A higher dielectric constant means the material provides greater capacitance and acts as a better insulator. The dielectric constant is dimensionless because it is measured relative to free space.

The actual permittivity (ε) of a dielectric is given by:

where

• ε₀ = Permittivity of free space
• εᵣ = Relative permittivity (dielectric constant)

A higher dielectric constant means greater capacitance for the same plate area and spacing.

The capacitance of a parallel plate capacitor is then expressed as:

where
A = Plate area, d = Distance between plates.

Increasing Capacitance with Multiple Plates

To increase the capacitance of a capacitor without making it physically larger, manufacturers often use a technique called interleaving. In this method, multiple plates are arranged alternately and connected in such a way that they form several parallel plate sections within a single capacitor body.

By adding more plates, the effective surface area (A) of the capacitor increases, which directly increases its capacitance — since capacitance is proportional to the plate area and inversely proportional to the distance between them.

A simple parallel plate capacitor has two plates, usually labeled A and B. In this case, the number of plates n = 2, and only one gap (or dielectric layer) exists between them. The capacitance is given by:

However, when a capacitor has multiple interleaved plates, each pair of adjacent plates forms its own dielectric gap, increasing the total capacitance. The general formula for such a capacitor becomes:

where:

• n = Number of plates
• A = Area of each plate
• d = Distance between adjacent plates

For a capacitor with 10 interleaved plates, there are 9 dielectric gaps (since n−1=9), which means the overall capacitance is nine times greater than that of a simple two-plate capacitor — assuming all other parameters remain the same.

In short, interleaving plates is an efficient way to achieve higher capacitance values in a compact design, commonly used in practical capacitor construction.

Introduction to Capacitors – Voltage Rating

Every capacitor has a maximum voltage rating, often listed as WV (Working Voltage) or WVDC. This is the maximum voltage that can be safely applied without damaging the dielectric.

If the voltage exceeds this rating, the dielectric can break down, causing arcing or even an explosion. As a general rule:

The working voltage of a capacitor depends on two main factors:

• The type of dielectric material used.
• The thickness of the dielectric layer.

It’s important to note that the DC working voltage applies only to direct current (DC). A capacitor rated for 250 volts DC cannot safely operate with 250 volts AC because an alternating current has a peak voltage higher than its RMS voltage. For example, an AC voltage of 100V RMS has a peak voltage of approximately 353V (250 × √2).

Therefore, if a capacitor is to be used with 250 volts AC, it should have a working voltage of at least 353 volts to ensure safety. In general, a good rule of thumb is to select a capacitor whose working voltage (DC or AC) is at least 50% higher than the maximum voltage expected in the circuit.

Dielectric Leakage

Even though the dielectric ideally blocks DC current, real materials have imperfections. Over time or at high voltages, a small leakage current can flow through the dielectric.
Excessive leakage indicates dielectric breakdown, leading to overheating and premature capacitor failure.

To prevent this, always ensure:

• The capacitor is used within its rated voltage range
• The operating temperature stays within safe limits

Types of Capacitors

Capacitors come in different types, depending on the dielectric material and their design. The main types of capacitors are:

• Ceramic capacitors – inexpensive, stable, and widely used in electronic circuits.
• Electrolytic capacitors – offer high capacitance, ideal for power supply filtering.
• Tantalum capacitors – compact, reliable, and used where space is limited.
• Film capacitors – accurate, durable, and have low energy loss.
• Mica capacitors – precise and suitable for high-frequency applications.

Other types include supercapacitors, used for energy storage, and paper capacitors for general-purpose circuits. Each capacitor type serves specific needs in electronics and power systems.

Introduction to Capacitors-Energy Stored

The energy stored in a capacitor is the electrical energy held between its two plates due to the electric field created by a voltage difference. When a capacitor is charged, it stores energy in its electric field, which can be released when the circuit requires it. The amount of energy stored depends on the capacitance and the applied voltage, given by the formula:

where E is the energy (in joules), C is the capacitance (in farads), and V is the voltage (in volts). Capacitors store and release energy quickly, making them essential in power supply and electronic circuits.

Applications of Capacitors

Capacitors serve numerous purposes in electronics, including:

• Filtering: Smooth DC output in power supplies
• Coupling and Decoupling: Pass AC signals while blocking DC
• Timing Circuits: Used in oscillators and pulse circuits
• Energy Storage: Store charge for flash cameras or power systems
• Power Factor Correction: Improve efficiency in AC networks

They are also essential in tuning circuits, signal processing, and electronic noise reduction.

Introduction to Capacitors – Summary

In this tutorial, we explored the role of a capacitor in electrical circuits. Fundamentally, a capacitor stores electrical charge on its plates, and the amount it can store is called its capacitance. The capacitance of a capacitor is influenced by three key factors:

1. Surface Area (A) – The size of the conductive plates forming the capacitor. Larger plate areas result in higher capacitance.
2. Distance (d) – The separation between the plates. A smaller distance increases the capacitance.
3. Dielectric Material – The insulating material placed between the plates, known as the dielectric. Materials with higher permittivity enhance the capacitance.

A typical capacitor consists of two metal plates that never touch, separated by a dielectric. While the dielectric can be air or even a vacuum, most capacitors use insulating materials such as waxed paper, glass, mica, or various plastics. The dielectric offers several advantages:

• The dielectric constant (k) of a material determines how much it boosts the capacitance.
• It provides mechanical support, allowing the plates to be closer without contacting each other.
• Higher permittivity materials increase the overall capacitance.
• It raises the maximum operating voltage compared to using air alone.

Capacitors serve many functions in electrical circuits. They can block DC currents while allowing AC signals, audio frequencies, pulses, or other time-varying waveforms to pass. This property makes them valuable for smoothing power supply outputs, filtering voltage spikes, and preventing damage or false triggering in semiconductors and digital components.

In audio or signal circuits, capacitors help shape frequency responses or couple separate amplifier stages, protecting them from DC transmission.

From a practical perspective:

• On a DC supply, a capacitor acts as an open circuit with very high impedance.
• At high frequencies, it behaves like a short circuit with near-zero impedance.

Every capacitor has a maximum working voltage (WVDC). For safe operation, it’s recommended to choose a capacitor rated at least 50% above the circuit’s supply voltage.

This tutorial on introduction to capacitors explains the basics of capacitors, including their structure, working principles, and applications in circuits. There are many types and styles of capacitors, each with unique advantages and limitations.

Conclusion

To summarize this introduction to capacitors, a capacitor is a device that stores electrical energy in an electrostatic field between two plates separated by a dielectric. The capacitance value depends on the plate area, plate spacing, and dielectric material.

Capacitors are vital in nearly every electrical and electronic circuit—whether smoothing voltages, filtering signals, or storing energy. Understanding their construction and working principles is the foundation for mastering more complex electrical systems.
