MOS Capacitor and MOS Capacitance C V Curve

Learn about MOS capacitor, its structure, and how its capacitance varies with voltage. Explore MOS capacitor behavior in capacitance-voltage (C-V) characteristics, including accumulation, depletion, and inversion regions.

Key Learnings:

MOS Capacitor Defined: A MOS capacitor consists of a metal gate, a semiconductor body, and an insulating silicon dioxide layer.
Capacitance and Voltage: The capacitance of a MOS capacitor varies with gate voltage, impacting charge distribution within the device.
Flat Band Voltage (V_fb): This voltage level represents no net charge across the capacitor, serving as a reference point for analysis.
Threshold Voltage (V_th): The voltage at which the depletion layer disappears and strong inversion starts, crucial for MOSFET operation.
C-V Curve Analysis: The capacitance-voltage (C-V) curve provides insights into different charge accumulation states, aiding MOS capacitor and MOSFET design.

What is MOS Capacitor & Its Structure

A MOS (Metal-Oxide-Semiconductor) capacitor is a fundamental component in semiconductor devices, particularly in MOSFETs and memory chips. It consists of three main layers:

Metal Gate: This layer acts as one terminal of the capacitor. Initially, metal was used, but modern MOS capacitors often employ heavily doped n+ poly-silicon to function as a conductive gate.
Insulating Layer: The gate is separated from the semiconductor body by a thin layer of silicon dioxide (SiO₂), which acts as a dielectric, preventing direct current flow and allowing charge accumulation.
Semiconductor Body: The bottom layer is typically silicon, forming the second terminal of the capacitor. Depending on doping, the substrate can be either p-type or n-type.

The capacitance of an MOS capacitor varies with the applied voltage at the gate. At different voltage levels, the semiconductor experiences accumulation, depletion, or inversion, altering its electrical properties. It is widely used in integrated circuits, dynamic random-access memory (DRAM), and MOSFET operation. Its ability to store and modulate charge makes it crucial in modern electronics.

MOS Capacitance and Voltage Characteristics

The capacitance of an MOS (Metal-Oxide-Semiconductor) capacitor depends on the voltage applied to its gate and varies across three key regions:

Accumulation (V_gb > V_fb):
When the gate-to-body voltage (V_gb) exceeds the flat-band voltage (V_fb), a positive charge accumulates on the gate. This induces a negative charge in the semiconductor, forming an accumulation layer of electrons at the interface. The capacitance in this region remains close to the oxide capacitance (C_ox).
Depletion (V_gb < V_fb):
With a gate voltage lower than V_fb, negative charge appears at the gate-oxide interface. This repels electrons from the semiconductor surface, leaving behind a region of immobile positive charge known as the depletion layer. The capacitance in this region decreases as the depletion width increases.
Inversion (V_gb > V_th):
When the gate voltage surpasses the threshold voltage (V_th), minority carriers (holes in n-type or electrons in p-type semiconductors) accumulate at the surface, forming an inversion layer. This layer behaves like a conducting channel, and the MOS capacitor enters strong inversion. The capacitance stabilizes at a lower value, limited by the depletion capacitance.

These characteristics are crucial in MOSFET operation, where charge modulation enables transistor switching.

MOS Band Diagram of MOS Capacitor

The MOS band diagram illustrates how the energy bands of a Metal-Oxide-Semiconductor (MOS) capacitor bend under different gate voltages. It helps explain carrier behavior in accumulation, depletion, and inversion regions, which are essential for MOSFET operation.

Accumulation: The conduction band bends downward, attracting electrons to the surface.
Depletion: The bands bend upward, creating a region devoid of mobile carriers.
Inversion: Further bending forms an inversion layer, where minority carriers dominate.

This band bending concept is fundamental in understanding threshold voltage, surface potential, and charge distribution in MOS devices.

C-V Curve of MOS Capacitor

The capacitance-voltage (C-V) curve of a MOS capacitor demonstrates its behavior in different operating states:

Flatband Voltage (Vfb): The voltage at which no net charge exists, marking the transition between accumulation and depletion regions.
Threshold Voltage (Vth): The point at which the depletion region vanishes, marking the start of strong inversion.

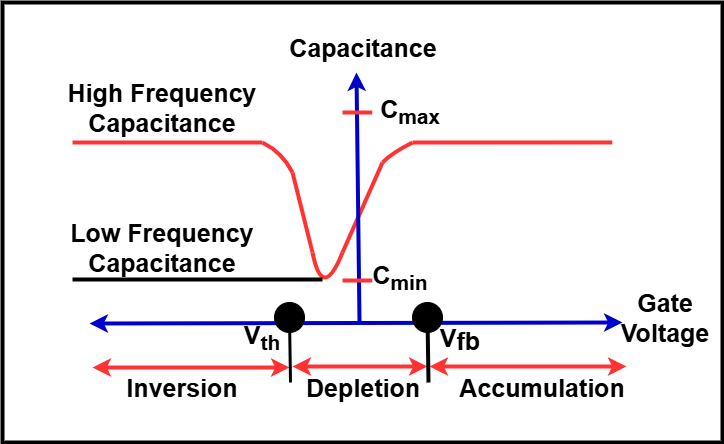

The capacitance-voltage (C-V) characteristics of a MOS capacitor with an n-type body are shown below.

The Capacitance vs. Gate Voltage (C-V) diagram illustrates the behavior of a MOS capacitor. The flatband voltage (V_fb) marks the transition between the accumulation and depletion regions, while the threshold voltage (V_th) separates the depletion and inversion regions.”

Typical C-V Curve Regions

Accumulation Region: High capacitance due to excess charge carriers.
Depletion Region: Capacitance decreases as the depletion layer widens.
Inversion Region: Capacitance stabilizes at a lower value due to minority carrier inversion.

MOSFET as a Capacitor

While MOS capacitors are not widely used alone, they play a critical role in MOSFETs. The MOSFET gate capacitance determines its switching speed and efficiency, making MOS capacitors essential in semiconductor device engineering.

Conclusion

The MOS capacitor is fundamental to modern semiconductor devices. Understanding its capacitance variations, MOS band diagram, and C-V curve is vital for designing and optimizing MOSFETs and integrated circuits.
