Oscillators: Definition, Working, Types, and Application

Learn about oscillators, their definition, working principles, types, and various applications in electronics. Understand how they generate waveforms for different systems.

Oscillators are the heart of many electronic devices we use daily. From your smartphone’s clock to a radio’s frequency generator, oscillators play a crucial role. An oscillator is an electronic circuit that produces repetitive oscillations by itself without any external stimulus. It generates signals of various waveforms like sine, square, and sawtooth, which are essential for different applications.

Oscillators are vital components in a wide range of electronic devices and systems. They are used in computers, clocks, watches, radios, television sets, signal generators, and even metal detectors. Their ability to create consistent and accurate signals makes them indispensable for both communication and timing purposes.

In this article, we will dive deep into the definition, working, types, and application of oscillators, while exploring real-world oscillator examples. This article provides an in-depth look at different types of oscillator, their working principles, and their vast field of use.

What is an Oscillator?

An oscillator is an electronic circuit that produces a continuous, repetitive waveform — without requiring any input signal other than a DC power supply. It essentially converts DC energy into an AC signal, generating outputs like sine waves, square waves, or other periodic waveforms depending on its design.

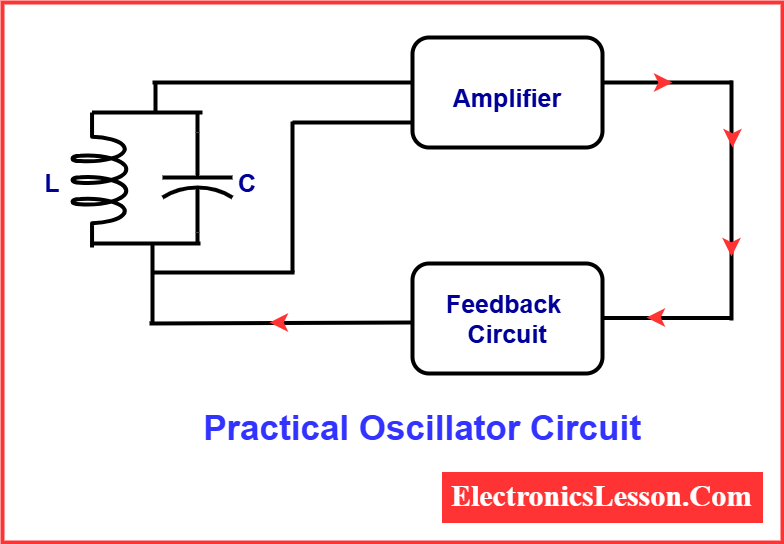

At its core, an oscillator contains an oscillatory circuit, typically made from capacitors, inductors, and amplifying devices such as transistors or operational amplifiers. These components work together to maintain continuous oscillations.

In simple terms, an oscillator is a circuit that produces alternating current (AC) of a desired frequency. It sustains these oscillations by providing positive feedback that compensates for energy losses within the circuit. When power is applied, even a tiny initial signal or noise is enough to trigger oscillations, which are then amplified and fed back repeatedly to produce a sustained output waveform.

The frequency of oscillations depends on the values of the components used in the oscillator circuit and can range from very low audio frequencies to extremely high radio frequencies.

In simpler words, an oscillator acts like the heartbeat of electronic devices, delivering regular pulses or signals necessary for their smooth operation.

Working of Oscillator

The working of oscillator is based on the principle of positive feedback and amplification. In an oscillator circuit, a part of the output is fed back into the input in phase with the original signal. This feedback sustains the oscillations without any external signal.

Here’s how the oscillator working happens:

  • An amplifier boosts a small initial signal.
  • A feedback network returns part of the output to the input.
  • This cycle continues, resulting in continuous oscillations.

For stable operation, the Barkhausen Criterion must be satisfied:

  1. The loop gain must be equal to one (or greater than one initially).
  2. The total phase shift around the loop must be 0° or 360°.

The oscillatory circuit (formed usually by inductors and capacitors) determines the frequency of the oscillation.

Block Diagram of Oscillator

In practical terms, an oscillator is essentially an amplifier circuit equipped with positive (regenerative) feedback, where a portion of the output signal is fed back into the input in phase.

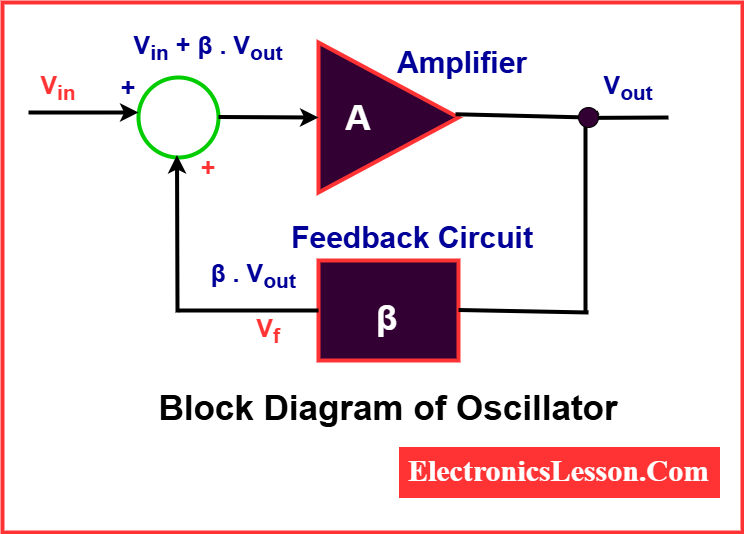

Block Diagram of Oscillator

The core of the amplifier consists of an active amplifying element—typically a transistor or an operational amplifier (Op-Amp). The in-phase feedback signal plays a crucial role by compensating for energy losses in the circuit, thus sustaining continuous oscillations.

When the power supply is turned ON, electronic noise naturally present in the circuit acts as the initial trigger. This random noise circulates through the feedback loop, gets amplified, and quickly stabilizes into a single-frequency sine wave.

The closed-loop gain of the oscillator, as represented in Figure 3, can be expressed as:

Oscillator Equation:

Closed-loop gain=Aβ

Where:

  • A = Voltage gain of the amplifier
  • β = Gain of the feedback network

The behavior of the oscillator depends on the value of Aβ:

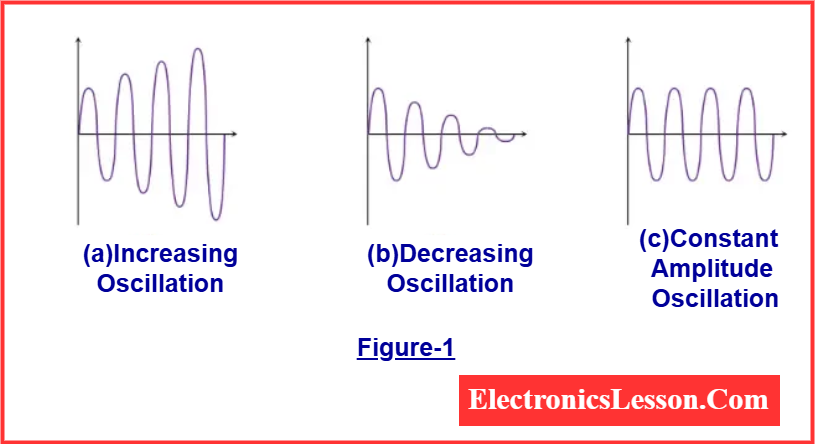

  • If Aβ>1 The amplitude of oscillations will keep increasing (see Figure 1a).
  • If Aβ<1A: The oscillations will gradually die out (see Figure 1b).
  • If Aβ=1A: Oscillations will sustain at a constant amplitude (see Figure 1c).
Oscillator Equation

In simple terms:

  • Feedback gain too low → Oscillations decay and stop.
  • Feedback gain too high → Output becomes distorted.
  • Feedback gain exactly unity (Aβ = 1)Stable, self-sustained oscillations are achieved.

Thus, achieving the condition Aβ=1 is critical for designing reliable and distortion-free oscillators.

Barkhausen Criterion in Oscillators

The Barkhausen Criterion outlines two essential conditions for a system to function as an oscillator:

  1. Phase Shift Condition: The total phase shift of the signals in the closed-loop system must be or 360°.
  2. Gain Condition: The product of the amplifier gain (A) and the feedback network gain (β), represented as , must be equal to 1.

Classification of Oscillators

Oscillators can be classified into various types based on different parameters such as the feedback mechanism, the shape of the output waveform, frequency range, type of frequency control, and the nature of the output frequency. These classifications are outlined below:

1. Based on the Feedback Mechanism

  • Positive Feedback Oscillators: Utilize regenerative feedback to sustain oscillations.
  • Negative Feedback Oscillators: Rarely used for sustained oscillations but may help in specific specialized circuits for stabilization.

2. Based on the Shape of the Output Waveform

  • Sine Wave Oscillators: Generate smooth sinusoidal waveforms.
  • Square or Rectangular Wave Oscillators: Produce square-shaped output waves, commonly used in digital circuits.
  • Sweep Oscillators: Produce a sawtooth waveform, useful in applications like radar and television displays.

3. Based on the Frequency of the Output Signal

  • Low-Frequency Oscillators (LFOs): Operate at very low frequencies, typically below the audio range.
  • Audio Frequency Oscillators: Generate frequencies in the audible range (20 Hz to 20 kHz).
  • Radio Frequency (RF) Oscillators: Operate within the RF spectrum (typically from a few kHz to several GHz).
  • High-Frequency Oscillators: Designed for very high frequency (VHF) and ultra-high frequency (UHF) applications.

4. Based on the Type of Frequency Control Used

  • RC Oscillators: Use resistor-capacitor (RC) networks to determine the frequency, suitable for lower frequencies.
  • LC Oscillators: Use inductor-capacitor (LC) circuits, ideal for high-frequency applications.
  • Crystal Oscillators: Use a quartz crystal to produce highly stable and accurate frequency outputs.

5. Based on the Nature of the Output Frequency

  • Fixed Frequency Oscillators: Provide a constant output frequency.
  • Variable or Tunable Frequency Oscillators: Allow the output frequency to be adjusted over a certain range.

Types of Oscillator

There are various types of oscillators based on the waveform generated, circuit design, and specific applications. Each type of oscillator serves a unique role, depending on the requirements for frequency, waveform shape, and stability.

1. Tuned Oscillator Circuits

Tuned oscillator circuits use LC (Inductor-Capacitor) tanks to generate oscillations at a specific resonant frequency. These circuits provide positive feedback at the resonant frequency while suppressing other frequencies.

  • Hartley Oscillator: Uses a tapped inductor for feedback and is often used in RF transmitters.
  • Colpitts Oscillator: Employs a capacitive voltage divider in the feedback path and is known for good frequency stability.
  • Clapp Oscillator: An improvement of the Colpitts design, offering even better frequency stability.
  • Pierce Oscillator: A variant that uses a crystal in place of the LC tank, popular in microprocessor clock circuits.
  • Vackar Oscillator: A highly stable linear tuned oscillator with a floating LC tank.

Applications: Radio transmitters, local oscillators in superheterodyne receivers, and signal generators.

2. Crystal Oscillators

Crystal oscillators use the mechanical resonance of a piezoelectric crystal, like quartz, to generate very stable and precise frequencies.

  • Working: A quartz crystal vibrates at a specific frequency when voltage is applied due to the piezoelectric effect. This vibration provides highly stable feedback for the oscillator circuit.
  • Advantages: Extremely accurate, stable over temperature and time, and low frequency drift.

Applications: Wristwatches, computers, smartphones, and communication devices where precise timing is critical.

3. Relaxation Oscillators

Relaxation oscillators create waveforms by the charging and discharging of capacitors, resulting in non-sinusoidal outputs like square or triangular waves.

  • Astable Multivibrator: Continuously switches between two states without needing an external trigger, generating a square wave.
  • 555 Timer Oscillator: A popular relaxation oscillator used in simple timing and pulse generation circuits.
  • Unijunction Oscillator: Uses a unijunction transistor to create a series of sharp rectangular output pulses.

Applications: Timers, switching power supplies, function generators, and waveform generators.

4. Phase-Shift Oscillator

The phase-shift oscillator uses RC networks to provide the necessary phase shift for feedback, producing low-frequency sinusoidal outputs.

  • Structure: Typically built with an op-amp and three RC sections providing a total phase shift of 180°, meeting the Barkhausen criterion for oscillation.
  • Waveform: Produces stable audio frequency sine waves.
  • Frequency Range: 30 Hz to 300 kHz, adjustable by selecting appropriate resistor and capacitor values.

Applications: Audio signal generators, function generators, and educational kits.

5. Wien Bridge Oscillator

The Wien Bridge oscillator is a popular circuit for generating highly stable sine waves at audio and higher frequencies.

  • Structure: Utilizes a Wien Bridge network in the feedback path of an amplifier.
  • Advantages: Greater frequency stability and linear tuning compared to phase-shift oscillators.
  • Tuning: Oscillation frequency can be easily adjusted by changing resistor or capacitor values.

Applications: Function generators, audio equipment, wavemeters, and communication systems.

6. Negative Resistance Oscillator

Some devices like tunnel diodes exhibit negative resistance, which can be used with resonant circuits to create oscillations at microwave frequencies.

Applications: High-frequency applications including microwave transmitters and oscillators.

7. Coupled Oscillators

When two or more oscillators interact, they can synchronize their frequencies through inductive, capacitive, resistive, or diffusive coupling.

  • Examples: Inductively coupled transformers, capacitively linked oscillators.
  • Behavior: Frequencies may lock together, show beats, or exhibit collective behaviors.

Applications: Neural networks, circadian rhythm modeling, coupled laser arrays, optical communication systems.

Oscillator Examples

Here are some oscillator examples you’ll find in real life:

  • Quartz crystal oscillators in wristwatches for timekeeping.
  • LC Oscillators in radios for tuning frequencies.
  • RC Oscillators in audio equipment for generating sound waves.
  • Voltage-Controlled Oscillators (VCOs) in cellphones for frequency modulation.

These oscillators examples show how widespread and vital oscillators are across industries.

Positive Feedback in Oscillators

For an amplifier circuit to sustain continuous oscillations, positive feedback is essential.

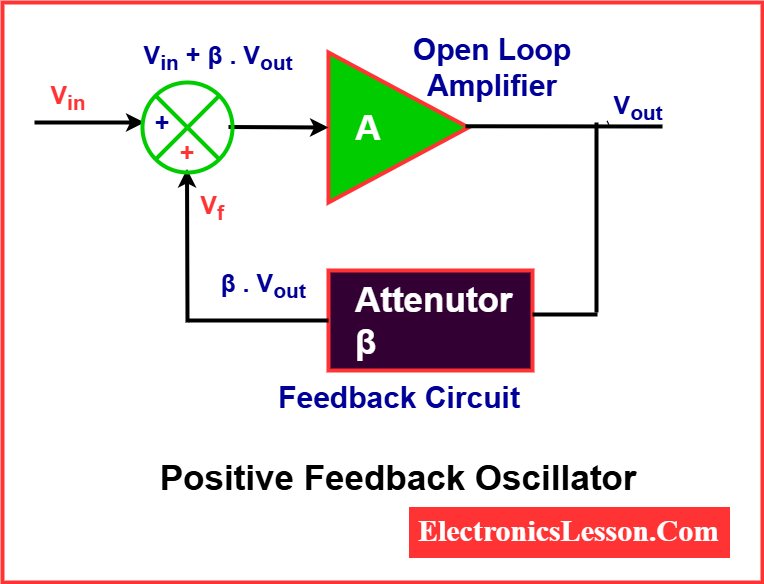

Positive Feedback in Oscillators

In a positive feedback oscillator, a portion of the output signal is fed back to the input in phase with the original signal. This reinforcement strengthens the oscillations, compensates for any energy lost due to resistance, and ensures that the amplitude remains steady over time instead of gradually fading away. Without positive feedback, oscillators would not be able to maintain continuous signal generation.

Characteristics of a Positive Feedback Circuit

For an amplifier with positive feedback to achieve and sustain oscillations, the following conditions must be met:

  • The total loop gain (the product of the amplifier gain and feedback network gain) must be equal to or slightly greater than 1.
  • The oscillation frequency is determined by the values of passive components, typically inductors (L) and capacitors (C).
  • Adjusting the feedback level can influence the output, affecting both the amplitude and the amount of distortion in the waveform.

Performance Comparison of Oscillators

When choosing an oscillator design, several factors must be considered, including:

  • Output frequency range
  • Size and cost
  • Power consumption
  • Tolerance and stability
  • Purity of the output waveform

In general, LC-based sine wave oscillators provide superior frequency selectivity and produce cleaner, more precise sine waves. In contrast, relaxation oscillators feature simpler circuit designs but typically generate non-sinusoidal waveforms, such as square or triangular waves.

Clock SourceFrequency RangeAccuracyAdvantagesDisadvantages
Quartz Crystal10 kHz to 100 MHzMedium to HighLow costSensitive to EMI, vibration, and humidity
Crystal Oscillator Module10 kHz to 100 MHzMedium to ExtremeInsensitive to EMI and humidity; no need for additional components or matchingHigh cost, high power consumption, sensitive to vibration, large size
Ceramic Resonator100 kHz to 10 MHzMediumLower costSensitive to EMI, vibration, and humidity
Integrated Silicon Oscillator1 kHz to 170 MHzLow to MediumInsensitive to EMI, vibration, and humidity; fast startup; small size; no external components neededHigher temperature sensitivity than ceramics/crystals; high supply current
MEMS OscillatorTens of kHz to Hundreds of MHzLow to ExtremeSimple design; small package; no external components; capable of driving multiple loadsExpensive
RC OscillatorHz to 10 MHzVery LowLowest costSensitive to EMI and humidity; poor temperature and voltage stability
LC OscillatorkHz to Hundreds of MHzLowLow costSensitive to EMI and humidity; poor temperature and voltage stability.

Advantages of Oscillators

Oscillators play a crucial role across countless electronic systems, offering a range of valuable advantages:

  • Wide Frequency Generation:
    Oscillators can produce a broad spectrum of frequencies, from a few hertz to several gigahertz, simply by adjusting circuit parameters like resistance, capacitance, and inductance.
  • Stable and Consistent Waveforms:
    They deliver highly stable and calibrated waveforms—such as sine, square, triangular, or sawtooth—which are essential for precise timing, synchronization, modulation, and signal processing in both digital and analog circuits.
  • Tunable Operation:
    Many oscillator designs offer the ability to dynamically control the output frequency, either manually (through variable components) or electronically (via voltage control), making them ideal for applications like radio tuning and signal generators.
  • Cost-Effective Implementation:
    Oscillator circuits are relatively inexpensive to design and build, especially when using standard discrete components. This makes them accessible for a wide range of consumer and industrial applications.
  • Low Power Consumption:
    Efficient oscillator designs are available that consume minimal power, making them perfect for battery-powered and portable devices like watches, medical implants, smartphones, and remote sensors.
  • Compact and Lightweight Designs:
    Integrated circuit (IC) oscillator modules enable highly compact, lightweight implementations, crucial for modern miniaturized electronics.
  • Versatility Across Applications:
    Oscillators are used everywhere—from clock generation in microprocessors and frequency control in communication systems to waveform generation in laboratory instruments.
  • Excellent Frequency Stability (Crystal Oscillators):
    Crystal oscillators, in particular, offer outstanding long-term frequency stability and accuracy, vital for timekeeping, navigation, and communication systems.

Application of Oscillation

The application of oscillation is vast and touches many fields:

  • Communication: Oscillators generate carrier waves in radios, televisions, and mobile phones.
  • Computing: Used in processors for clock generation and timing.
  • Medical Equipment: Oscillations are used in ultrasound machines and medical imaging.
  • Measurement and Testing Instruments: Oscillators help in signal generation for testing circuits.
  • Audio Systems: They are essential in producing audio tones in musical instruments and synthesizers.

In short, oscillators are critical wherever precise frequency generation or signal modulation is needed.

Conclusion

Oscillators form the backbone of modern electronics, offering solutions from simple timers to complex communication systems. By understanding the oscillator working, different oscillator types, and the real-world application of oscillation, one can appreciate the importance of these marvelous circuits. Whether it’s a simple clock circuit or an advanced satellite communication device, oscillators are there, keeping everything ticking and transmitting smoothly.
