A TVS diode (Transient Voltage Suppression diode) is a semiconductor device designed to protect electronic circuits from voltage spikes by clamping excessive voltage and diverting transient energy away from sensitive components.
Learn about transients, their impact on circuits, and how TVS diodes provide protection. Explore the types, characteristics, key parameters, and real-world applications of TVS diodes.
Diodes are fundamental semiconductor devices widely used in electronic designs, including rectifiers, converters, inverters, protection circuits, and regulators. The three most common types are Rectifier Diodes, Zener Diodes, and Schottky Diodes. However, another specialized diode, the TVS Diode, plays a crucial role in handling transient spikes in power electronics circuits. In this article, we will explore Transient Voltage Suppressors (TVS diodes) and why they are essential for circuit protection.
What is meant by Transients?

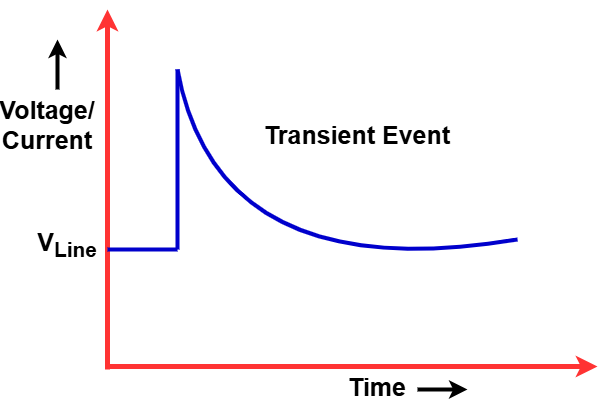

Transients are short-lived surges in voltage or current that can potentially damage electronic circuits. They occur due to sudden changes in electrical conditions and can vary in magnitude from a few millivolts to several thousand volts. These spikes may last anywhere from a few nanoseconds to several hundred milliseconds, depending on their source and nature.
Some transients occur only once, often due to events like lightning strikes, power line switching, or electrostatic discharge (ESD). Others are repetitive, resulting from inductive loads, motor switching, or frequent electrical disturbances within a system. Regardless of their origin, transients pose a significant risk to sensitive components, leading to degradation, malfunction, or even complete circuit failure.
In modern electronic designs, engineers implement various protection techniques to mitigate transient effects. One common method is using Transient Voltage Suppressor (TVS) diodes, which clamp excessive voltages and prevent damage to components. Other protection devices include varistors, capacitors, and snubber circuits.
By addressing transients effectively, designers can enhance the reliability and lifespan of electronic devices. Understanding transients and their impact is crucial in designing robust systems, particularly in industries where circuit stability is critical, such as automotive, telecommunications, and power electronics.
What causes Transients in a circuit?
Transients in a circuit can arise from both internal and external sources. Internally, they often result from inductive load switching, where energy stored in inductors is suddenly released, creating voltage spikes. Faulty contacts in switches and connectors can also generate transients due to momentary disconnections or arcing, leading to sudden voltage fluctuations.
Externally, transients can be triggered by lightning strikes, which introduce high-voltage surges into power lines, affecting connected circuits. Inductive switching in nearby equipment, such as motors and transformers, can also induce transient voltages through electromagnetic interference. These unexpected voltage spikes can damage sensitive components, disrupt normal operation, and shorten the lifespan of electronic devices.
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are specialized protection devices designed to safeguard circuits from sudden voltage or current spikes. These transient surges can occur due to inductive switching, electrostatic discharge (ESD), or external factors like lightning strikes. If left unchecked, such spikes can damage sensitive electronic components, leading to circuit failure.
TVS devices work by clamping excessive voltage, quickly diverting the transient energy away from critical components. They are typically placed in parallel with the circuit to provide a low-impedance path during overvoltage events. When a transient occurs, the TVS diode instantly conducts, absorbing the surge and limiting the voltage to a safe level. Once the transient subsides, it returns to a non-conducting state.
TVS diodes are widely used in power supplies, communication systems, and automotive electronics, ensuring stable operation and extended device longevity. Their fast response time makes them a crucial component in transient protection.
Types of Transient Voltage Suppressors (TVS)
There are several types of devices used for transient voltage suppression, including Metal Oxide Varistors (MOVs), TVS diodes, Zener diodes, and bypass capacitors. Each serves a specific purpose in protecting electronic circuits from sudden voltage spikes.
Based on their operation, Transient Voltage Suppressors are classified into two main types: clamping and crowbar devices.

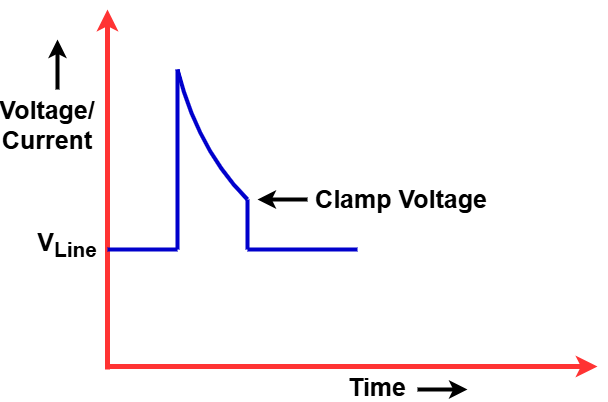

Clamping Devices: These devices limit voltage to a fixed level by absorbing excess energy from transient events. They act as a barrier, preventing voltage spikes from exceeding a safe threshold. TVS diodes are a common example of clamping devices.

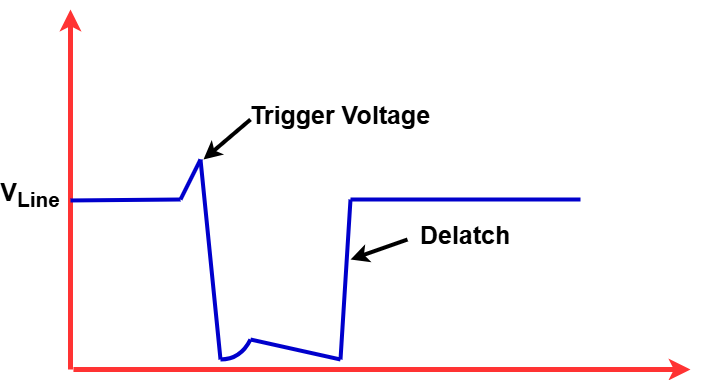

Crowbar Devices: Unlike clamping devices, crowbar devices create a short circuit when a transient spike occurs. They immediately divert excess energy away from sensitive components, reducing the line voltage. Once the transient subsides, the crowbar device delatches, restoring normal circuit operation.
Both types of TVS devices play a crucial role in ensuring circuit stability and protection.
Transient Voltage Suppressor (TVS) Diode
A Transient Voltage Suppressor (TVS) Diode is a specialized solid-state PN-junction diode engineered to protect sensitive semiconductor components and circuits from sudden or momentary overvoltage conditions. These overvoltage events, often caused by electrostatic discharge (ESD), inductive load switching, or lightning surges, can severely damage electronic devices if left unchecked.
Unlike standard diodes and Zener diodes, which are primarily designed for rectification and voltage regulation, TVS diodes are specifically optimized for fast response and high-energy absorption. When a transient voltage surge occurs and exceeds the avalanche breakdown voltage of the TVS diode, it immediately clamps the excess voltage, diverting the unwanted energy away from sensitive components.
Key Features of TVS Diodes
- Clamping Action: The diode absorbs excess transient energy when the voltage surpasses its breakdown threshold.
- Automatic Reset: After the overvoltage event dissipates, the diode returns to its non-conducting state without requiring external intervention.
- Fast Response Time: TVS diodes react within picoseconds to nanoseconds, making them highly effective in transient suppression.
- Higher Robustness: Compared to standard Zener diodes, TVS diodes offer better transient energy handling, ensuring superior protection for high-speed and sensitive electronic circuits.
TVS diodes are widely used in communication systems, automotive electronics, industrial automation, and consumer electronics to prevent voltage spikes from causing irreversible circuit damage. Their reliability and efficiency make them an essential component in modern electronic design.
Types of TVS Diodes
Transient Voltage Suppressor (TVS) diodes are classified into two main types: Unidirectional TVS diodes and Bidirectional TVS diodes. Each type is designed for specific applications and offers unique characteristics for transient protection.
1. Unidirectional TVS Diode
A unidirectional TVS diode operates like a standard avalanche diode and functions as a rectifier in the forward direction. It is specifically engineered to handle large peak currents while protecting circuits from transient voltage spikes. When the voltage exceeds its breakdown level, it clamps the excess energy, ensuring that sensitive components remain unaffected. Its circuit symbol closely resembles that of a Zener diode.

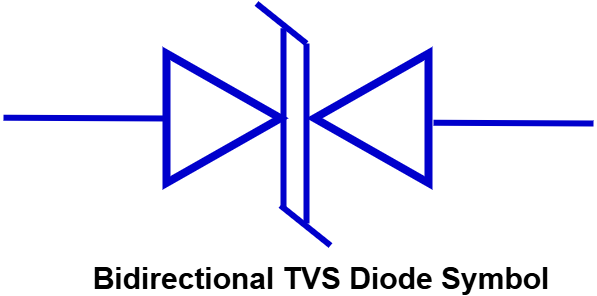

2. Bidirectional TVS Diode
A bidirectional TVS diode consists of two avalanche diodes connected in opposite directions within a single component. This configuration allows it to suppress transients in both positive and negative voltage swings. Bidirectional TVS diodes are typically placed in parallel with the circuit or device they protect. They are commonly used in AC circuits or data lines, where voltage can fluctuate in both directions.
Both types of TVS diodes provide rapid response times and high energy absorption, making them essential components in electronic circuit protection.
The polarity of a TVS diode determines its suitability for different circuit types. Unidirectional TVS diodes function like standard diodes, allowing current to flow in one direction and clamping voltage spikes in that direction. They are ideal for protecting single-pole circuits such as low-voltage power lines and DC applications. However, they are not suitable for bipolar circuits where voltage swings in both directions.
On the other hand, bidirectional TVS diodes provide symmetrical protection, clamping voltage transients in both positive and negative directions. This makes them suitable for protecting bipolar circuits, data lines, CAN bus systems, and telecommunication networks. Additionally, bidirectional TVS diodes can also be used in single-pole circuits where bidirectional suppression is necessary. Their ability to handle AC signals and alternating voltage transients makes them a preferred choice for signal and communication lines where bidirectional protection is required.
Working of TVS Diodes

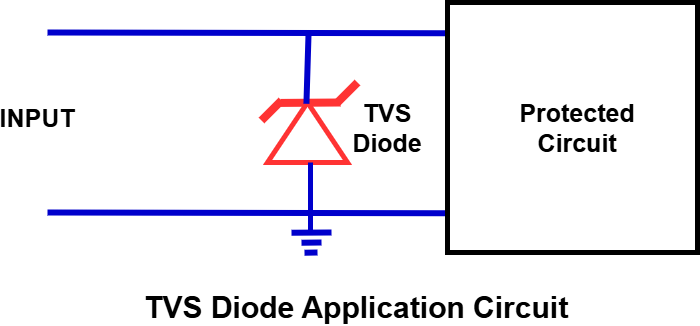

TVS diodes operate as voltage clamping devices, designed to protect circuits from transient voltage spikes. Under normal conditions, the TVS diode remains in a non-conductive state, appearing as an open circuit with only a small leakage current flowing through it.
When a transient voltage spike occurs and exceeds the breakdown voltage of the TVS diode, the diode enters avalanche mode. In this state, it rapidly conducts a large amount of current, effectively clamping the excess voltage and preventing it from reaching the protected circuit.
As the transient event subsides and the voltage returns to its normal operating range, the TVS diode automatically resets and stops conducting. This self-resetting mechanism ensures that the diode is ready to protect against future transients without requiring manual intervention or replacement.

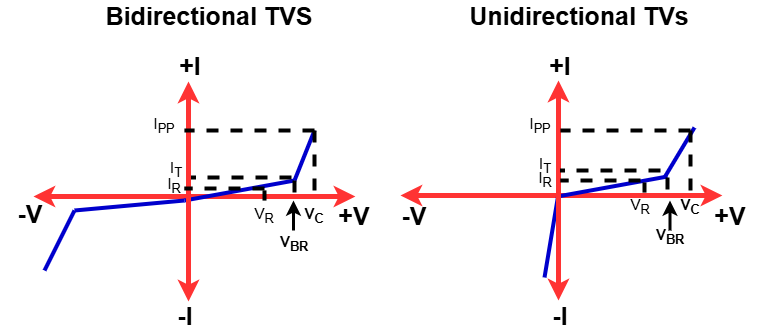

V-I Characteristics of TVS Diodes
The Voltage-Current (V-I) characteristics of both unidirectional and bidirectional TVS diodes help in understanding their behavior during transient events. The characteristic curve illustrates how the diode responds to increasing voltage and current.
For a bidirectional TVS diode, the V-I curve is symmetrical in both positive and negative directions. This means that regardless of how it is connected in a circuit, it will respond identically to voltage spikes of either polarity.
On the other hand, a unidirectional TVS diode functions similarly to a rectifier diode in the forward direction. It has a higher turn-on voltage when forward biased, whereas in reverse bias, it enters avalanche mode when the breakdown voltage is exceeded, clamping the transient spike.
In both cases, when the applied voltage surpasses the breakdown threshold, the TVS diode conducts heavily, diverting excessive current away from sensitive components. Once the transient subsides, the diode automatically resets, returning to its high-impedance state and allowing normal circuit operation.
TVS Diode Parameters
TVS diodes are available in various types, each designed for specific applications. When selecting a TVS diode, consider the following key parameters from the datasheet to ensure it meets your circuit protection needs.
- Reverse Stand-Off Voltage (VR):
This is the maximum voltage that can be applied to the diode without triggering it. VR should be equal to or slightly higher than the peak operating voltage of the circuit to prevent unnecessary clamping during normal operation. - Breakdown Voltage (VBR):
The voltage at which the diode begins conducting to suppress transient voltages. Typically specified at 1mA of current, this ensures the device activates at the correct threshold. - Clamping Voltage (VC):
The highest voltage that appears across the diode during a transient event. It determines how much voltage the protected circuit will experience. Most datasheets specify VC at a 1A or 2A transient waveform with an 8µS rise time. - Peak Pulse Current (IPP):
The maximum surge current the TVS diode can withstand safely during a transient event. - Capacitance (C):
The parasitic capacitance of the diode affects high-frequency applications. Lower capacitance is preferable for high-speed data lines. - Response Time:
TVS diodes react in picoseconds (ps), making them ideal for fast transient suppression. Faster response times ensure sensitive circuits are protected almost instantly. - Power Dissipation (PM):
The amount of power the TVS diode can dissipate without damage. Higher power dissipation indicates better handling of large transients.
By understanding these parameters, engineers can select the right TVS diode for effective transient voltage protection.
What is Clamping Voltage in TVS Diodes?
Clamping voltage (VC) in TVS diodes is the maximum voltage that appears across protected components during a transient event. When the breakdown voltage (VBR) is exceeded, the diode conducts and limits the surge to the clamping voltage, preventing damage to sensitive electronics.
The relationship between clamping voltage and peak pulse current (IPP) is crucial. If their combined effect surpasses the peak pulse power (PPP) rating of the diode, the TVS device may experience electrical overstress, leading to degradation or catastrophic failure.
A lower clamping voltage provides better protection by keeping transient voltages lower, but it can introduce signal distortion in certain applications. Therefore, selecting an appropriate TVS diode requires balancing clamping voltage, breakdown voltage, and peak pulse current to ensure optimal circuit protection.
What is Peak Pulse Power in a TVS Diode?
Peak Pulse Power (PPP) is the maximum power a TVS diode can handle during a transient event without sustaining damage. Measured in watts (W), it represents the diode’s ability to absorb and dissipate energy from voltage spikes, ensuring the protection of sensitive electronic components.
PPP should not be confused with Peak Pulse Current (IPP). While PPP refers to power dissipation, IPP—measured in amperes (A)—indicates the highest transient current the diode can withstand. Choosing a TVS diode with a peak pulse current rating higher than the expected transient current ensures reliable surge protection.
Top Causes of TVS Diode Failure
TVS diode failure often results from improper selection or excessive current flow beyond its peak pulse power rating. The most common causes include:
- Exceeding Peak Pulse Power (PPP): If the transient surge surpasses the diode’s capacity, it can lead to thermal or electrical breakdown.
- Overvoltage Exposure: Repeated exposure to voltages beyond the diode’s clamping voltage can degrade its performance over time.
- Improper Selection: Using a TVS diode with incorrect voltage ratings or current-handling capacity may render it ineffective.
- Thermal Stress: Poor heat dissipation or excessive operating temperatures can cause degradation or failure.
- Manufacturing Defects: Low-quality or counterfeit components may fail prematurely due to inconsistencies in materials or design.
Failure of a TVS diode can result in electronic system damage, data loss, system failures, fire hazards, increased maintenance costs, and unreliable performance. Proper selection and circuit design are essential to ensure long-term reliability.

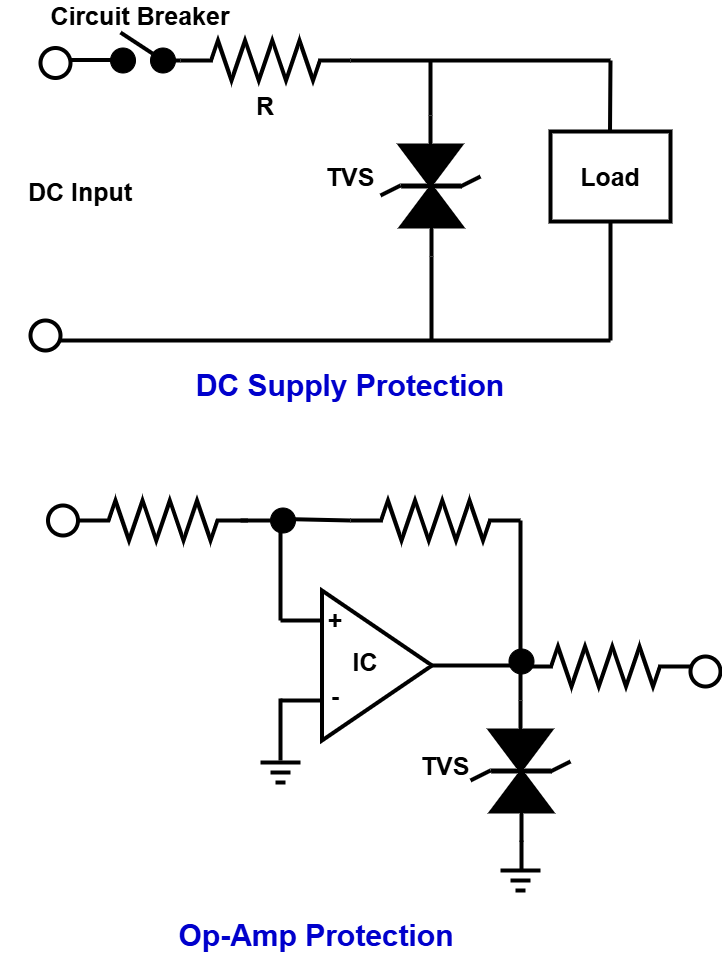

Applications of TVS Diodes
TVS diodes are widely used for clamping and diversion in low-energy circuits, protecting sensitive electronics from ESD (Electrostatic Discharge) and transient voltage spikes. Their applications span various fields, ensuring the reliability and longevity of electronic components.
Common applications of TVS diodes include:
- Data and Signal Lines: Protects communication and interface lines from transient voltage surges.
- Microprocessors & MOS Memory: Shields microcontrollers and memory modules from voltage spikes.
- AC/DC Power Lines: Prevents overvoltage damage in power distribution systems.
- Telecommunication Equipment: Protects networking and telecom devices from lightning-induced transients.
- Automotive Electronics: Used in CAN bus and sensor protection circuits.
- Consumer Electronics: Ensures safe operation in USB, HDMI, and other high-speed ports.
TVS diodes are a reliable and cost-effective solution for transient protection, making them essential in modern electronic designs.
Differences Between TVS Diode and Zener Diode
Although both TVS (Transient Voltage Suppression) diodes and Zener diodes operate using the reverse breakdown characteristics of a diode, their applications and behaviors differ significantly.
- Primary Function
- Zener Diodes: Used for voltage regulation, maintaining a stable voltage across a circuit.
- TVS Diodes: Designed for transient voltage suppression, protecting circuits from sudden overvoltage spikes.
- Voltage Characteristics
- Zener Voltage (VZ): Specified within a low current range (5mA–40mA) where voltage remains stable.
- TVS Breakdown Voltage (VBR): Activated only during transient overvoltage conditions, preventing circuit interference under normal operation.
- Operating State
- Zener Diodes: Operate continuously, regulating voltage.
- TVS Diodes: Normally OFF, only activating when a transient occurs.
- Current Handling Capacity
- Zener Diodes: Handle lower currents.
- TVS Diodes: Handle high surge currents (several amperes to tens of amperes) to absorb transient energy.
- Applications
- Zener Diodes: Used in voltage reference circuits and power regulation.
- TVS Diodes: Used for ESD protection, lightning protection, and inductive load switching.
How to Choose a TVS Diode
Selecting the right TVS (Transient Voltage Suppression) diode is crucial for ensuring optimal circuit protection. Several key factors influence the choice of a suitable TVS diode, including its electrical characteristics, physical dimensions, and application-specific requirements.
Key Selection Factors:
- Configuration
- Choose between unidirectional (for DC circuits) or bidirectional (for AC circuits or data lines).
- Clamping Voltage (VC)
- The maximum voltage a circuit will be exposed to during a transient event.
- Ensure the clamping voltage is lower than the damage threshold of the protected components.
- Peak Pulse Current (IPP)
- The maximum transient surge current the diode can handle without damage.
- Select a diode with a higher IPP rating than expected surge conditions.
- Physical Dimensions
- Ensure the diode fits within the design’s space constraints.
Additional Considerations:
- Breakdown Voltage (VBR): The voltage at which the diode begins to conduct to protect the circuit.
- Reverse Stand-off Voltage (VRWM): The normal operating voltage that should not be exceeded under standard conditions.
Choosing the right type of TVS diode is the final critical step, based on whether your circuit needs unidirectional or bidirectional protection.
Advantages of TVS Diodes
TVS diodes provide essential protection for electronic circuits by absorbing and dissipating transient energy, ensuring system stability and longevity. Their key advantages include:
- Enhanced Reliability – TVS diodes effectively shield electronic systems from voltage spikes, reducing the likelihood of unexpected failures.
- Improved Safety – By preventing overvoltage damage, they help reduce the risk of electrical fires and other hazards.
- Extended Component Lifespan – Protecting sensitive components from voltage transients minimizes wear and tear, reducing the frequency of replacements.
- Industry Compliance – High-quality TVS diodes help meet stringent regulatory standards, crucial for applications in automotive, aerospace, and telecommunications.
- Cost-Effectiveness – By preventing system failures and minimizing downtime, they contribute to significant cost savings on repairs and maintenance.
- Reduced Interference – Their high impedance and noise attenuation properties minimize electromagnetic interference (EMI) in sensitive circuits.
- Versatility – TVS diodes are widely used across various applications, offering protection for power lines, data lines, and integrated circuits.
Disadvantages of TVS Diodes
While TVS diodes provide excellent transient voltage protection, they also have some limitations:
- Limited Energy Absorption – TVS diodes are designed to handle short-duration transient surges but may fail under prolonged overvoltage conditions.
- Clamping Voltage Variation – The clamping voltage is not always precise, and slight variations can affect circuit performance.
- High Capacitance – Some TVS diodes have high capacitance, which can interfere with high-speed signal transmission, making them less suitable for RF and high-frequency applications.
- Single-Use in Extreme Cases – If a transient exceeds the diode’s peak pulse power rating, the TVS may become damaged or permanently shorted.
- Limited Reverse Stand-Off Voltage (VRWM) – The maximum operating voltage is relatively low, restricting usage in high-voltage applications.
- Thermal Dissipation Challenges – TVS diodes can generate heat during transient suppression, which may require additional thermal management in high-power applications.
Conclusion
TVS diodes are essential components for protecting electronic circuits from transient voltage spikes caused by ESD, inductive load switching, and lightning strikes. They provide fast response times, low clamping voltages, and high surge-handling capabilities, making them ideal for safeguarding sensitive components.
However, their effectiveness depends on proper selection based on parameters like reverse stand-off voltage (VRWM), clamping voltage (VC), and peak pulse power (PPP). While they offer reliable transient protection, limitations such as high capacitance, thermal dissipation challenges, and single-use failure under extreme surges should be considered in circuit design.
Overall, TVS diodes are a cost-effective and efficient solution for transient voltage suppression in automotive, industrial, telecommunication, and consumer electronics applications. Selecting the right TVS diode ensures enhanced system reliability, longevity, and compliance with industry safety standards.
