What is Avalanche Breakdown?

Avalanche breakdown is a phenomenon in semiconductors where a large increase in current occurs at a particular reverse-bias voltage, leading to the breakdown of the electrical insulation properties of the device, typically a diode. This event can occur in diodes and transistors when subjected to high reverse voltages.

How Avalanche Breakdown Happens:

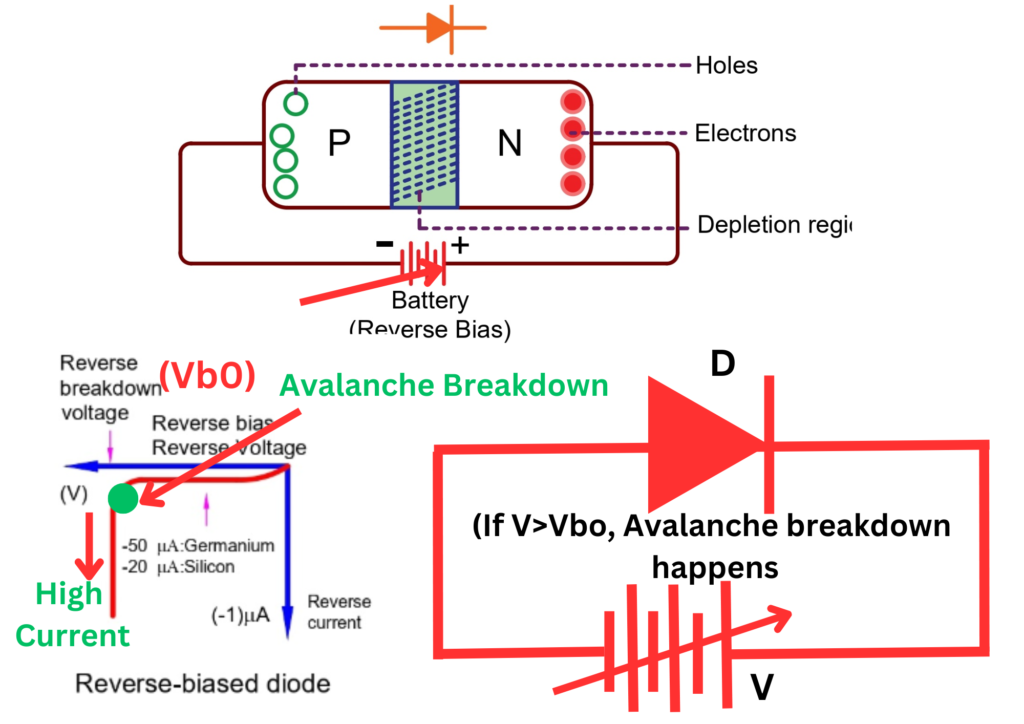

  1. High-Reverse Voltage Application: When a high reverse voltage is applied across a semiconductor junction (such as in a diode), the electric field across the depletion region becomes extremely strong.
  2. Acceleration of Charge Carriers: The strong electric field accelerates the minority charge carriers (electrons in p-type material and holes in n-type material) in the depletion region to very high velocities.
  3. Collision and Ionization: As these high-energy carriers move through the material, they collide with the lattice atoms of the semiconductor. If the kinetic energy of the moving carriers is high enough, these collisions can knock electrons out of their atomic bonds, creating additional electron-hole pairs.
  4. Multiplication of Charge Carriers: The newly created carriers (from the collisions) are also accelerated by the electric field, leading them to collide with more atoms and create even more carriers. This process rapidly escalates in a chain reaction, exponentially increasing the number of free carriers in a very short time.
  5. Massive Current Increase: The result is a massive increase in current through the diode, known as avalanche current. This sudden surge can damage the semiconductor device if not properly managed or if the device is not designed to withstand such conditions.

Factors Affecting Avalanche Breakdown:

  • Doping Concentration: Lower doping concentrations in the semiconductor material lead to wider depletion regions, facilitating higher electric fields at lower voltages.
  • Material Properties: Different semiconductor materials have different breakdown voltages depending on their physical properties, such as band gap energy and lattice structure.
  • Temperature: Increasing temperature generally lowers the breakdown voltage because higher thermal energy increases carrier generation, reducing the voltage needed to start the avalanche process.

Application in Devices:

While avalanche breakdown can be destructive, it is also harnessed in certain applications:

  • Avalanche Diodes: These are designed to operate in the avalanche region to provide voltage regulation or protection against voltage spikes.
  • Photodiodes: Avalanche photodiodes are used to detect low levels of light in optical communication systems, where the avalanche effect is used to amplify the photocurrent and improve the sensitivity of the device.

Understanding and controlling avalanche breakdown is crucial in the design of high-voltage electronic components and systems, ensuring their safe operation under extreme conditions.
