Varactor Diode: Definition, Symbol, Construction, Working, Formula, Applications

In this article, we will explore the varactor diode, including its symbol, construction, working principle, and capacitance formula. We will also examine its characteristics, applications in tuning circuits, advantages, and disadvantages.

What Is a Varactor Diode?

A varactor diode is a semiconductor device designed to provide variable capacitance controlled by an applied reverse-bias voltage. It is a specially designed P-N junction diode that uses the capacitance of its depletion region to regulate charge storage.

Also known as a varicap diode, volt-cap diode, or tuning diode, it operates primarily in reverse bias rather than serving as a conventional current-conducting diode. When the reverse-bias voltage changes, the width of the depletion region changes, causing the junction capacitance to increase or decrease.

This voltage-controlled capacitance makes the varactor diode useful in electronic circuits that require frequency adjustment, including radio tuners, voltage-controlled oscillators, and frequency synthesizers.

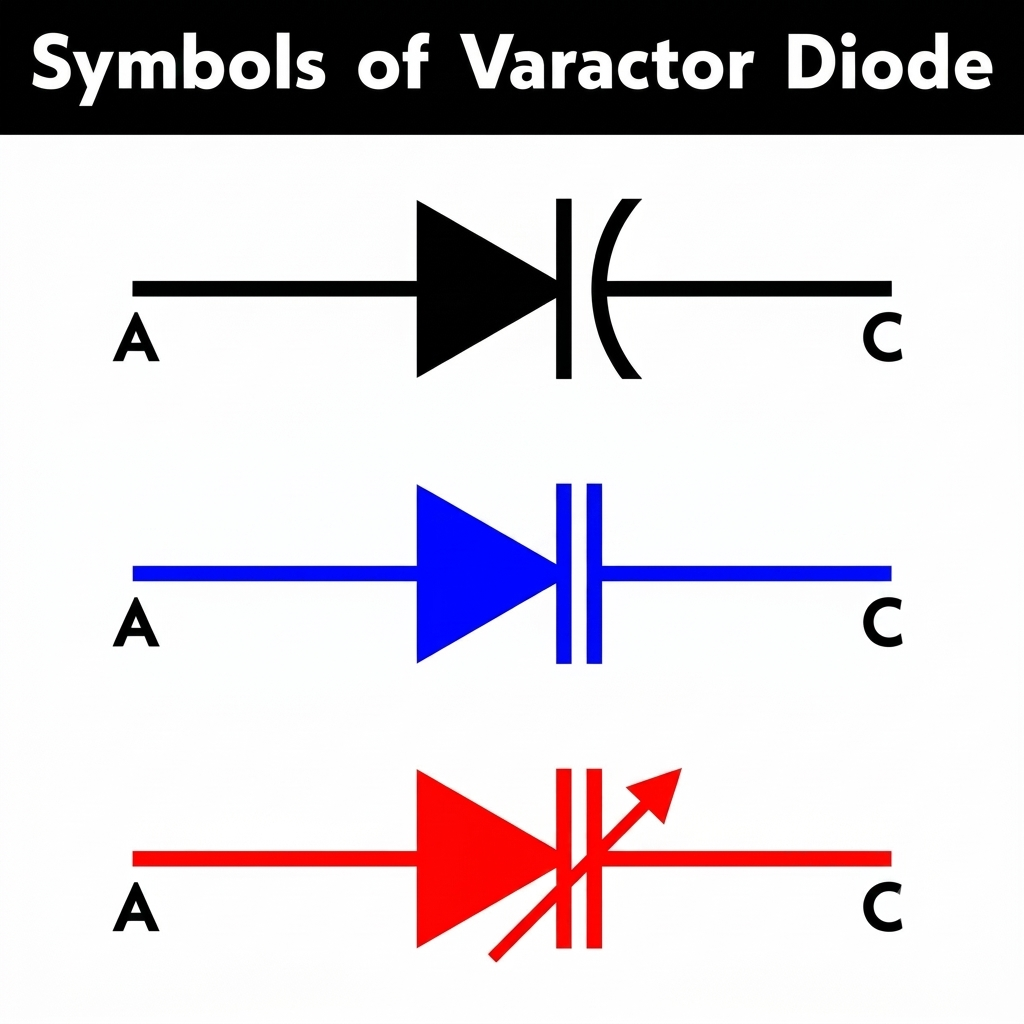

Symbol of Varactor Diode

The symbol of a varactor diode looks similar to that of a PN-junction diode. It has two terminals – an anode and a cathode. One end of the symbol represents the diode, while the other end has two parallel lines that depict the conductive plates of the capacitor. The gap between these plates indicates their dielectric. The symbol of the varactor diode is shown in the image below.

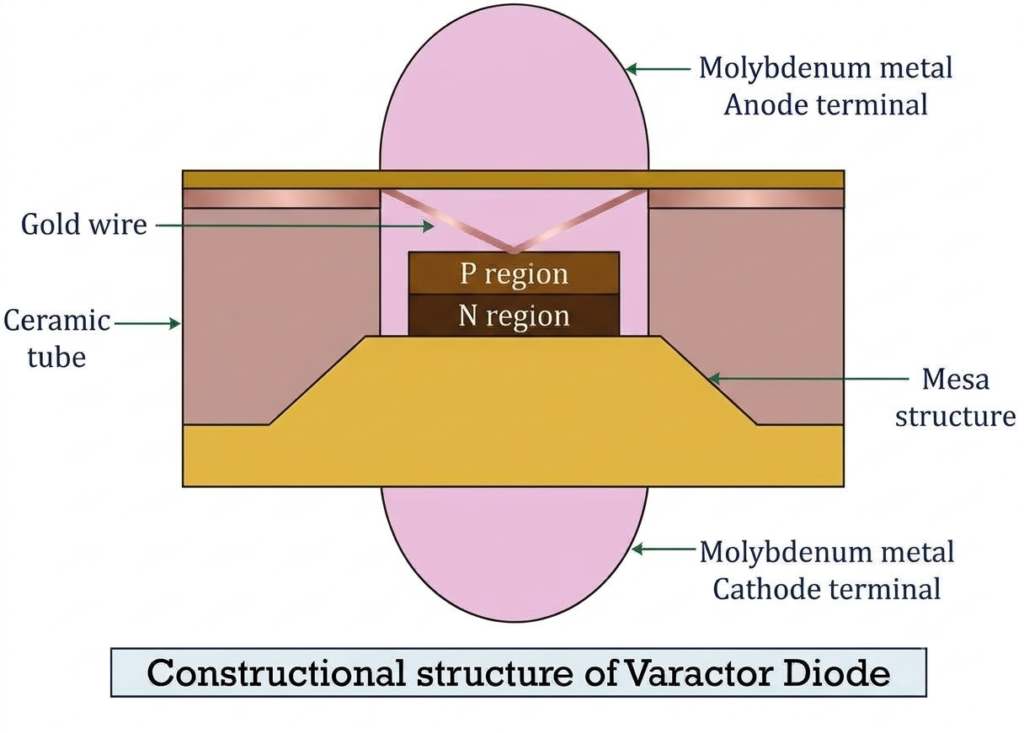

Construction of a Varactor Diode

A varactor diode has a construction similar to that of a conventional P-N junction diode. However, it is specially designed to provide a controlled change in junction capacitance when the applied reverse-bias voltage varies.

Varactor diodes are generally manufactured using semiconductor materials such as silicon. Gallium arsenide (GaAs) may also be used in certain high-frequency applications.

The main component of a varactor diode is a P-N junction formed by introducing suitable impurities into a semiconductor material through a process called doping. The P-type region contains holes as the majority charge carriers, whereas the N-type region contains electrons as the majority charge carriers.

When these two regions are joined, a depletion region forms at the junction. Its width changes according to the applied bias voltage. Under forward bias, the depletion region becomes narrower. Under reverse bias, it widens, allowing the junction capacitance to be controlled by adjusting the voltage. For normal operation, a varactor diode is reverse-biased.

Metal contacts are provided on the P-type and N-type regions to connect the diode to an external circuit. These contacts allow a reverse voltage to be applied across the junction, enabling the diode to function as a voltage-controlled capacitor.

Working of Varactor Diode

A varactor diode is a semiconductor device that works as a voltage-controlled capacitor. Unlike a conventional capacitor, whose capacitance is generally fixed, a varactor diode changes its junction capacitance according to the applied reverse-bias voltage. This property makes it useful in electronic tuning and frequency-control circuits.

A varactor diode consists of P-type and N-type semiconductor regions. The P-type region contains holes as the majority charge carriers, while the N-type region contains electrons. When these regions form a P-N junction, electrons and holes diffuse across the junction and recombine, creating a depletion region containing immobile charged ions.

Why Does a Varactor Diode Operate in Reverse Bias?

A varactor diode is normally operated under reverse bias because its main function is to provide a controllable junction capacitance rather than to conduct current.

When forward bias is applied, the depletion region becomes narrower and substantial current can flow. This is not the normal operating condition for a varactor diode. Under reverse bias, the depletion region widens, and the diode conducts only a very small leakage current under normal operating conditions.

The width of this region changes with the applied reverse voltage, allowing the diode’s capacitance to be adjusted electronically.

Working Principle of a Varactor Diode

The working of a varactor diode can be understood through the following steps:

1. Applying reverse bias

When the positive terminal of a DC supply is connected to the N-region and the negative terminal to the P-region, the junction becomes reverse-biased. The majority charge carriers move away from the junction, widening the depletion region.

2. Formation of a capacitor-like structure

The P-type and N-type regions act approximately as the conducting plates of a capacitor, while the depletion region behaves like the insulating layer between them. The capacitance associated with this junction is called transition capacitance or junction capacitance.

3. Effect of reverse voltage on capacitance

The transition capacitance depends on the width of the depletion region. When the reverse voltage increases, the depletion region becomes wider, causing the junction capacitance to decrease. When the reverse voltage decreases, the depletion region becomes narrower, and the capacitance increases.

The relationship can be expressed as:

This equation shows that the transition capacitance is inversely proportional to the depletion-region width.

4. Controlling capacitance electronically

By varying the reverse-bias voltage, the capacitance of the varactor diode can be adjusted without mechanically changing any component. This voltage-dependent capacitance is used in radio-frequency tuning circuits, voltage-controlled oscillators (VCOs), frequency modulators, and other high-frequency applications.

In summary, increasing the reverse-bias voltage widens the depletion region and reduces capacitance, whereas decreasing the reverse-bias voltage narrows the depletion region and increases capacitance.

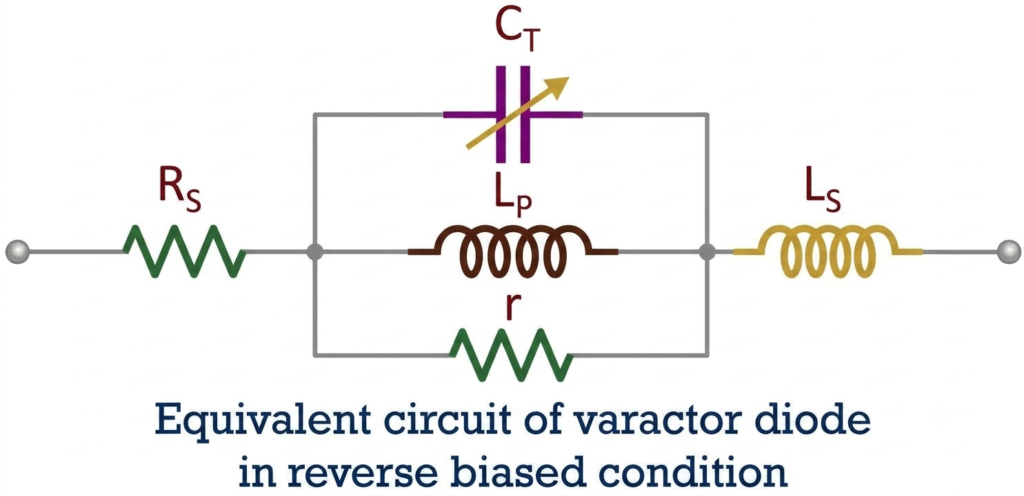

Equivalent Circuit of a Varactor Diode

The equivalent circuit of a varactor diode represents its capacitance and the parasitic electrical components that affect its performance.

The main components of the equivalent circuit are:

• $R_S$ represents the series resistance of the diode.
• $C_T$ denotes the transition or junction capacitance, which varies with the applied reverse-bias voltage.
• $r$ represents the reverse leakage resistance, which is ideally very high to minimize leakage current.
• $L_S$ represents the effective series inductance associated with the diode and its connections.

A high reverse resistance and low series resistance help improve the varactor diode’s quality factor and reduce power losses. Silicon is commonly used to manufacture varactor diodes because of its suitable semiconductor properties and established fabrication processes.

Formula of a Varactor Diode

The capacitance of a varactor diode depends on the width of its depletion region. When the depletion layer becomes narrower, the junction capacitance increases. Conversely, a wider depletion region results in lower capacitance.

The transition capacitance can be expressed as:

Where:

• $C_T$ = transition capacitance
• $\varepsilon$ = permittivity of the semiconductor material
• $A$ = effective junction area
• $W$ = width of the depletion region

A varactor diode is generally operated under reverse bias. A lower reverse voltage produces a narrower depletion region and higher capacitance, while increasing the reverse voltage widens the depletion region and reduces capacitance.

Varactor Diode Capacitance Formula

The voltage-dependent junction capacitance can also be represented by the following relationship:

Where:

• $C_T$ = transition capacitance at the applied reverse voltage
• $C_0$ = junction capacitance at zero applied bias
• $V_R$ = applied reverse-bias voltage
• $V_B$ = built-in junction potential
• $m$ = grading coefficient, determined by the junction profile

The value of (m) depends on the doping profile and junction construction. This equation shows that the capacitance decreases as the reverse-bias voltage increases.

Quality Factor of a Varactor Diode

The quality factor indicates how effectively a varactor diode stores energy compared with the energy it loses. It is commonly expressed as:

Where:

• $Q$ = quality factor
• $f$ = operating frequency
• $C_T$ = junction capacitance
• $R_s$ = diode’s series resistance

A higher quality factor generally indicates lower losses, which is desirable in high-frequency circuits such as voltage-controlled oscillators and tuning circuits.

Characteristic of Varactor Diode

The graph illustrates the nonlinear relationship between the reverse-bias voltage and the capacitance of a varactor diode. Since junction capacitance is inversely proportional to the width of the depletion region, increasing the reverse-bias voltage widens the depletion region and reduces the capacitance.

As the reverse voltage increases, the transition capacitance decreases nonlinearly. The rate of decrease depends on the diode’s junction structure and doping profile. Therefore, the capacitance-voltage characteristic is generally nonlinear rather than a simple straight-line relationship.

Varactor Diode in a Tuning Circuit

A varactor diode is widely used in radio-frequency (RF) and microwave tuning circuits because its capacitance can be adjusted by changing the applied reverse-bias voltage. This feature allows the resonant frequency of an LC circuit to be controlled electronically.

The resonant frequency of an LC tuning circuit is given by:

Where:

• $f_0$ = resonant frequency in hertz (Hz)
• $L$ = inductance of the circuit in henries (H)
• $C_T$= equivalent capacitance of the circuit in farads (F)

If two capacitors, $C_1$ and $C_2$, are connected in series, their equivalent capacitance is:

Here, $C_1$ and $C_2$ represent the capacitances connected in series. If one of these capacitors is a varactor diode, its capacitance varies with the applied reverse-bias voltage.

How a Varactor Diode Works in a Tuning Circuit

• Reverse-bias operation: The varactor diode is connected in reverse bias so that it functions primarily as a voltage-controlled capacitor rather than as a conducting diode.
• Capacitance adjustment: Increasing the reverse-bias voltage widens the depletion region and reduces the diode’s capacitance. Decreasing the reverse-bias voltage increases its capacitance.
• Frequency control: The varactor diode forms part of the resonant LC circuit. Changing its capacitance changes the total capacitance and, consequently, the resonant frequency.
• Electronic tuning: The frequency can be adjusted by varying a control voltage, eliminating the need for a mechanical tuning mechanism.

For a fixed inductance, the resonant frequency decreases when the total capacitance increases and rises when the total capacitance decreases.

Applications of Varactor Diodes in Tuning Circuits

Varactor diodes are used in voltage-controlled oscillators (VCOs), radio tuners, frequency synthesizers, frequency-modulation circuits, and electronically tunable RF receivers. Their rapid voltage-controlled response makes them suitable for applications that require accurate and flexible frequency adjustment.

Applications of Varactor Diode

A varactor diode is widely used in electronic circuits that require voltage-controlled capacitance. Its ability to adjust capacitance by changing the reverse-bias voltage makes it useful in the following applications.

• Voltage-Controlled Oscillators (VCOs): Varactor diodes are used in VCOs to control the oscillation frequency. Changing the reverse-bias voltage changes the diode’s capacitance, which alters the resonant frequency. VCOs are commonly used in phase-locked loops (PLLs) and communication systems.
• Frequency Tuning in Radios: Varactor diodes are used in radio-frequency tuning circuits to adjust the resonant frequency electronically. By varying the applied voltage, the capacitance changes, allowing radio receivers to select different frequencies without mechanical tuning components.
• Phase Shifters: In RF and microwave phase-shifting circuits, varactor diodes adjust the phase of a signal by changing the circuit’s capacitance. They are useful in phased-array antenna systems for electronic beam steering and direction control.
• Voltage-Controlled Filters: Varactor diodes are incorporated into tunable low-pass, band-pass, and other RF filter circuits. Changing the reverse-bias voltage adjusts the capacitance and shifts the filter’s cutoff or resonant frequency, depending on the circuit design.
• Frequency Multipliers: Varactor diodes are used in frequency multiplier circuits to generate output signals at harmonics of an input frequency. Their nonlinear capacitance characteristics help produce the required harmonics in RF and microwave applications.
• Automatic Frequency Control (AFC): Varactor diodes are used in automatic frequency control circuits to correct frequency deviations in oscillators and receivers. By adjusting the reverse-bias voltage, the diode capacitance changes, helping maintain the desired operating frequency.

Advantages of Varactor Diode

Varactor diodes offer several benefits in electronic circuits, particularly in applications that require electronic tuning and frequency control.

• Voltage-Controlled Capacitance: The capacitance of a varactor diode can be adjusted by changing its reverse-bias voltage. This feature makes it useful in electronically tunable circuits without mechanical adjustments.
• Compact Size: Varactor diodes are small semiconductor devices that can be easily integrated into compact electronic equipment, including RF modules and communication systems.
• Precise Frequency Tuning: By varying the applied voltage, the diode capacitance changes, allowing the resonant frequency of oscillators and tuning circuits to be adjusted accurately.
• Fast Electronic Response: Varactor diodes allow rapid capacitance adjustment through voltage control, making them suitable for frequency synthesizers, phase shifters, and automatic tuning systems.
• Low Power Consumption: Since a varactor diode normally operates under reverse bias, it draws only a small leakage current under normal conditions, resulting in low power consumption.
• Cost-Effective Design: Varactor diodes are generally economical and can simplify tuning circuits by reducing the need for bulky mechanical variable capacitors.

Disadvantages of Varactor Diode

Despite their advantages, varactor diodes have certain limitations that must be considered during circuit design.

• Reverse-Bias Operation: A varactor diode is designed primarily for reverse-biased operation. Forward bias causes significant current flow and is not suitable for its normal variable-capacitance function.
• Nonlinear Capacitance: The relationship between reverse-bias voltage and capacitance is nonlinear. This characteristic can introduce distortion or unwanted frequency changes in circuits that require highly linear tuning.
• Temperature Dependence: Changes in temperature can affect the diode’s electrical characteristics, including its capacitance and leakage current, potentially causing frequency drift.
• Limited Capacitance Range: The available capacitance variation depends on the diode design and its permitted reverse-voltage range. This can limit the tuning range of a circuit.
• Parasitic Effects at High Frequencies: Package inductance, series resistance, and other parasitic elements can affect performance at high frequencies, reducing the quality factor and increasing circuit losses.

Conclusion

A varactor diode is a specially designed P-N junction diode that operates primarily under reverse bias to provide voltage-controlled capacitance. Its capacitance changes with the applied reverse voltage because the width of the depletion region varies accordingly. This nonlinear capacitance-voltage relationship makes the device useful in radio tuning circuits, voltage-controlled oscillators, frequency synthesizers, and phase shifters.

Although varactor diodes offer advantages such as compact size, low power consumption, and convenient electronic tuning, their performance can be affected by temperature variations, parasitic effects, and the limited capacitance range of the device.
